SDS-40J footprint, schematic symbol and 3D model by Same Sky

Symbol

click to zoom

PCB Footprints

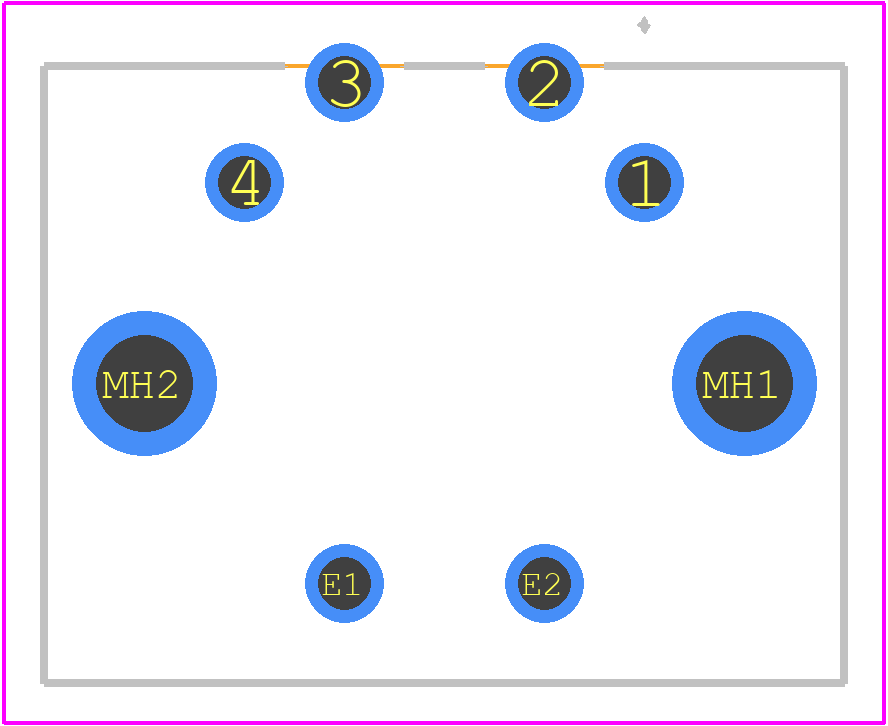

SDS-40J - Same Sky PCB footprint - Other - Other - SDS-40J-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SDS-40J
Part Number SDS-40J
Manufacturer Same Sky
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - SDS-40J-1
Released Date Feb 21, 2021
Last Modified Date May 20, 2026 3:53 PM UTC
Pinout / Pin List Click Here (Member Only)

SDS-40J Details

Manufacturer Part Number:
SDS-40J
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Same Sky
YTEOL:
7.5
Body Breadth:
0.826 inch
Body Depth:
0.606 inch
Body Length:
0.787 inch
Body/Shell Style:
JACK
Connector Type:
DIN CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pitch Circle Diameter:
7 mm
Contact Resistance:
30 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
250VAC V
Durability:
1000 Cycles
EMI Shielded:
NO
Insertion Force-Max:
63.7 N
Insulation Resistance:
50000000 Ω
Insulator Color:
BLACK
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
2 A
Reference Standard:
UL
Terminal Length:
0.138 inch
Termination Type:
SOLDER
Total Number of Contacts:
4

SDS-40J Frequently Asked Questions (FAQs)

A good PCB layout for the SDS-40J involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and EMI.
To ensure proper decoupling, place a 10uF ceramic capacitor between the VIN and GND pins, and a 100nF ceramic capacitor between the VOUT and GND pins, as close to the device as possible.
The SDS-40J can handle input voltages up to 40V, but it's recommended to keep the input voltage below 36V to ensure reliable operation and to prevent damage to the device.
The SDS-40J is rated for operation up to 85°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliable operation and to prevent overheating.
To troubleshoot issues with the SDS-40J, check the input voltage, output voltage, and output current, and ensure that the device is properly decoupled and laid out on the PCB. Also, check for any signs of overheating or physical damage.
