- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SDS-50J
- Part Number SDS-50J
- Manufacturer Same Sky
- Pin Count 9
- Part Category Connector
- Package Category Other

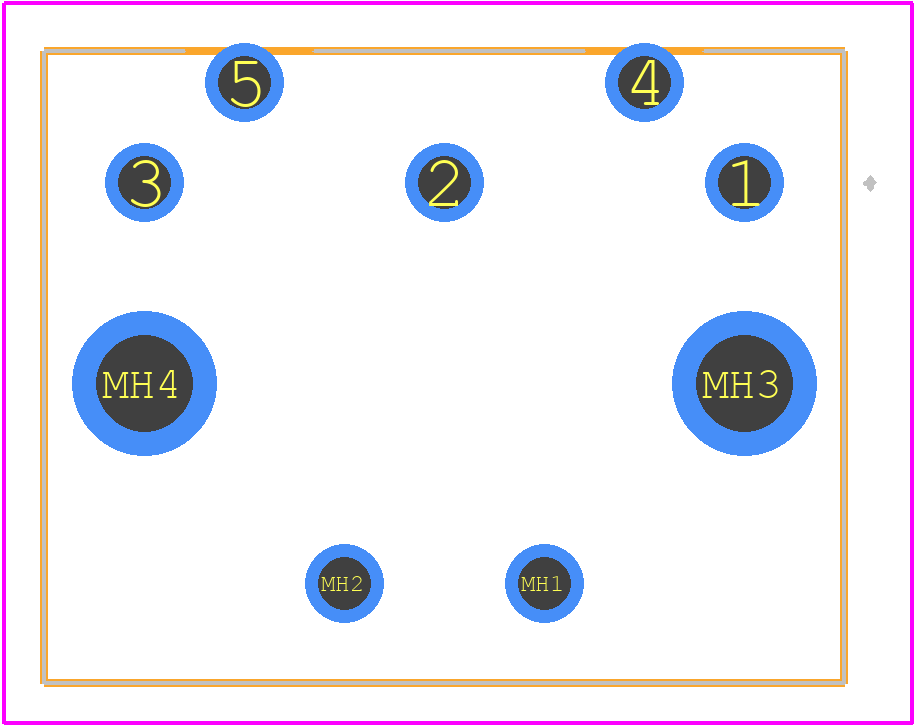

- Footprint Name Other - SDS-50J-1
- Released Date Feb 3, 2020
- Last Modified Date May 20, 2026 3:53 PM UTC
- Pinout / Pin List Click Here (Member Only)
SDS-50J Details
-
Manufacturer Part Number:
SDS-50J
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Same Sky
-
YTEOL:
7.5
-
Body Breadth:
0.831 inch
-
Body Depth:
0.622 inch
-
Body Length:
0.787 inch
-
Body/Shell Style:
JACK
SDS-50J Frequently Asked Questions (FAQs)
-
A good PCB layout for the SDS-50J involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 10nF capacitor between the input and ground to filter out noise.
-
To ensure proper decoupling, place a 10uF capacitor between the input and ground, and a 100nF capacitor between the output and ground. This will help filter out noise and ensure stable operation.
-
The SDS-50J can handle input voltages up to 50V, but it's recommended to operate within the specified input voltage range of 12V to 48V for optimal performance and reliability.
-
The SDS-50J is rated for operation up to 85°C, but it's recommended to derate the output power by 1.5% per degree Celsius above 60°C to ensure reliable operation.
-
To troubleshoot issues with the SDS-50J, check the input voltage, output voltage, and output current. Verify that the input voltage is within the specified range, and that the output voltage and current are within the specified limits. Also, check for any signs of overheating or physical damage.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
SDS-50J Overview
Use the download button to access the SDS-50J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SDS-5,
or try a keyword search, such as DIN Connectors
