SDS-6-014 - ERG COMPONENTS

SDS-6-014 Details

• Manufacturer Part Number:

  SDS-6-014

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  ITW ERG Components

• Actuator Type:

  SLIDE TYPE

• Body Breadth:

  10.5 mm

• Body Height:

  8.6 mm

• Body Length or Diameter:

  15 mm

• Center Contact Plating:

  GOLD

• Contact (AC) Max Rating R Load:

  1A@100VAC

• Contact Current(AC)-Max:

  1 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  1A@100VDC

• Contact Function:

  ON-OFF

• Contact Resistance:

  0.02 mΩ

• Contact Voltage(AC)-Max:

  100 V

• Contact Voltage(DC)-Max:

  100 V

• Dielectric Withstand Volts:

  500VAC V

• End Contact Plating:

  GOLD

• Insulation Resistance:

  10000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Switch Sections:

  6

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -55 °C

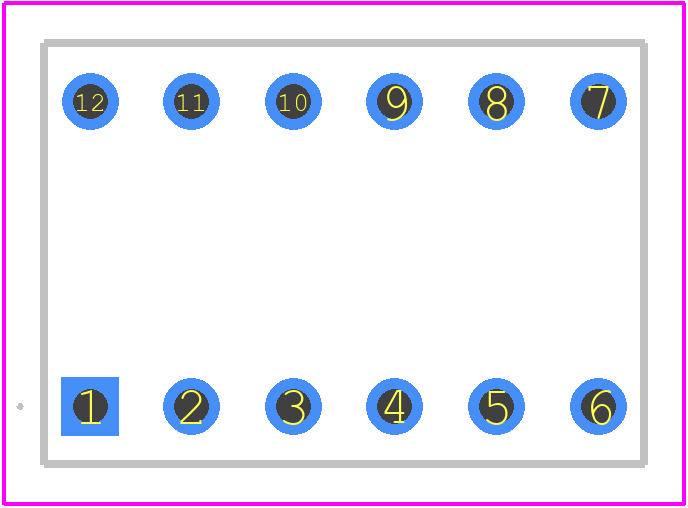

• PCB Hole Count:

  12

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  SLIDE DIP SWITCH

• Terminal Length:

  0.118 inch

• Termination Type:

  SOLDER
