SDS-60J footprint, schematic symbol and 3D model by Same Sky

Symbol

click to zoom

PCB Footprints

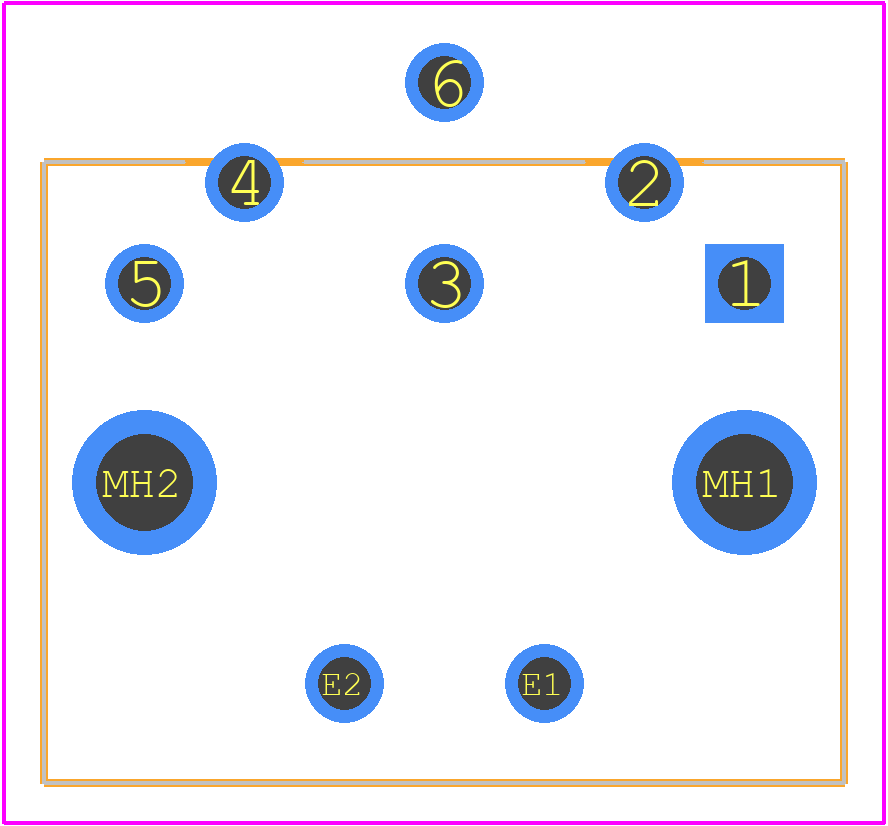

SDS-60J - Same Sky PCB footprint - Other - Other - SDS-60J-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SDS-60J
Part Number SDS-60J
Manufacturer Same Sky
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - SDS-60J-3
Released Date Oct 12, 2020
Last Modified Date May 20, 2026 3:53 PM UTC
Pinout / Pin List Click Here (Member Only)

SDS-60J Details

Manufacturer Part Number:
SDS-60J
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Same Sky
YTEOL:
7.5
Body Breadth:
0.831 inch
Body Depth:
0.61 inch
Body Length:
0.787 inch
Body/Shell Style:
JACK
Connector Type:
DIN CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pitch Circle Diameter:
7 mm
Contact Resistance:
30 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
250VAC V
Durability:
1000 Cycles
EMI Shielded:
NO
Insertion Force-Max:
63.7 N
Insulation Resistance:
50000000 Ω
Insulator Color:
BLACK
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
2 A
Reference Standard:
UL
Terminal Length:
0.138 inch
Termination Type:
SOLDER
Total Number of Contacts:
6

SDS-60J Frequently Asked Questions (FAQs)

A good PCB layout for the SDS-60J involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces to reduce EMI and noise.
To ensure proper decoupling, place a 10uF ceramic capacitor between the input pin and the power supply, and a 100nF ceramic capacitor between the output pin and ground. This will help filter out noise and ripple.
The SDS-60J can operate safely within a temperature range of -40°C to 85°C. However, it's recommended to derate the output power by 1.5% per degree Celsius above 60°C to ensure reliable operation.
Yes, the SDS-60J is designed to withstand vibrations up to 10G peak acceleration. However, it's recommended to secure the device using a suitable mounting method, such as a screw or adhesive, to prevent mechanical stress.
To troubleshoot issues with the SDS-60J, start by checking the input voltage, output voltage, and current draw. Use an oscilloscope to inspect the output waveform for noise or distortion. Also, verify that the device is properly decoupled and the PCB layout is correct.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SDS-60J Overview

Use the download button to access the SDS-60J schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SDS-6, or try a keyword search, such as DIN Connectors

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
