SDS-8-014 - ERG

SDS-8-014 Details

• Manufacturer Part Number:

  SDS-8-014

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  ITW ERG Components

• Body Breadth:

  10.5 mm

• Body Height:

  8.6 mm

• Body Length or Diameter:

  20.1 mm

• Center Contact Plating:

  GOLD

• Contact (AC) Max Rating R Load:

  1A@100VAC

• Contact Current(AC)-Max:

  1 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  1A@100VDC

• Contact Function:

  ON-OFF

• Contact Resistance:

  0.02 mΩ

• Contact Voltage(AC)-Max:

  100 V

• Contact Voltage(DC)-Max:

  100 V

• Dielectric Withstand Volts:

  500VAC V

• End Contact Plating:

  GOLD

• Insulation Resistance:

  10000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Switch Sections:

  8

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -55 °C

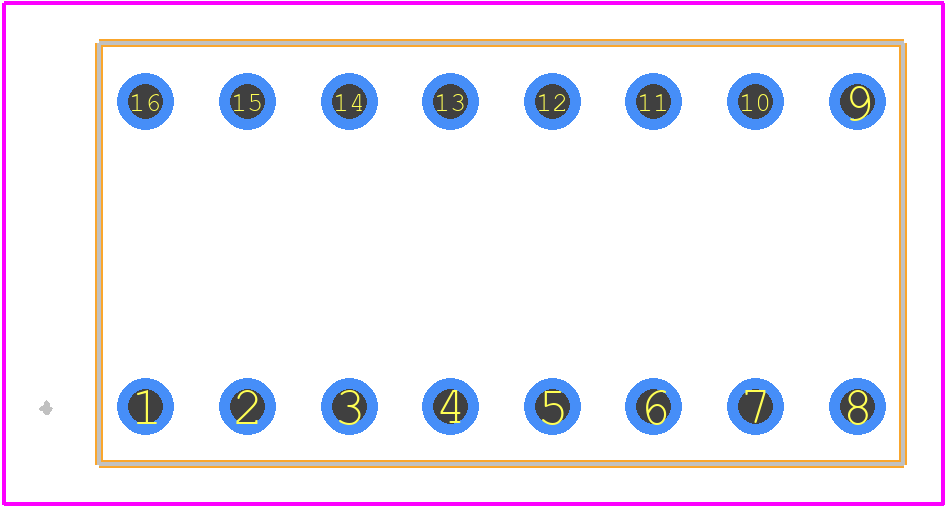

• PCB Hole Count:

  16

• Sealing:

  MOISTURE PROOF

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  SLIDE DIP SWITCH

• Termination Type:

  SOLDER
