- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SDS-80J
- Part Number SDS-80J
- Manufacturer Same Sky
- Pin Count 12
- Part Category Connector
- Package Category Other

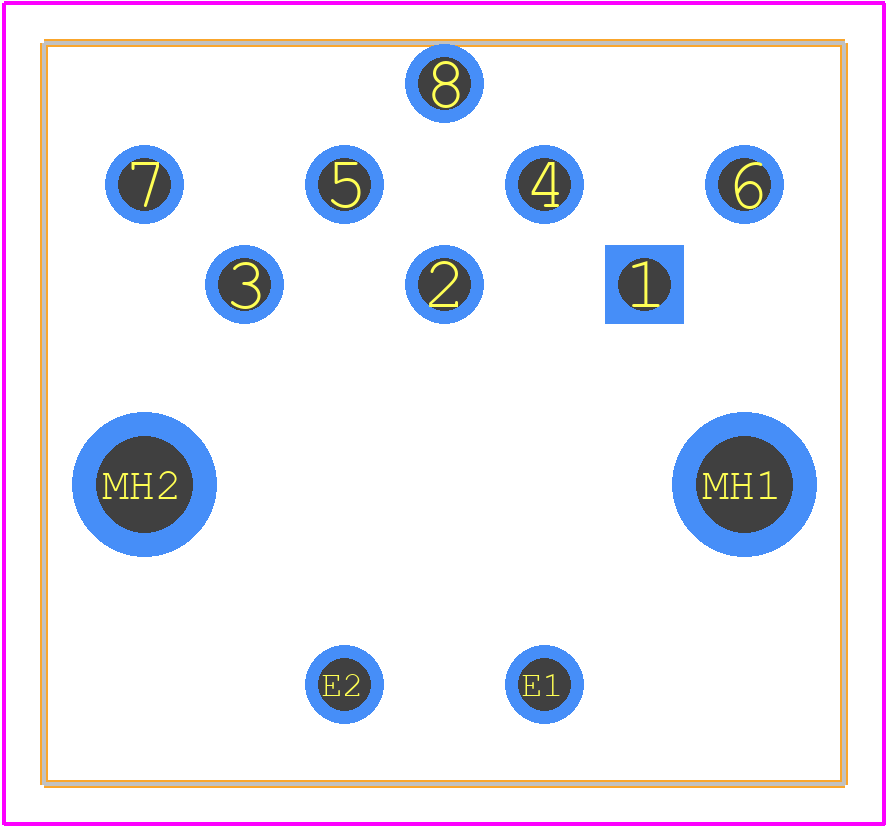

- Footprint Name Other - SDS-80J-1
- Released Date Jul 8, 2020
- Last Modified Date May 20, 2026 3:53 PM UTC
- Pinout / Pin List Click Here (Member Only)
SDS-80J Details
-
Manufacturer Part Number:
SDS-80J
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Same Sky
-
YTEOL:
7.5
-
Body Breadth:
0.831 inch
-
Body Depth:
0.728 inch
-
Body Length:
0.787 inch
-
Body/Shell Style:
JACK
SDS-80J Frequently Asked Questions (FAQs)
-
A good PCB layout for the SDS-80J involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate airflow, using a heat sink if necessary, and ensuring that the device is operated within its specified temperature range.
-
To minimize EMI emissions, it's recommended to use a shielded enclosure, keep the input and output cables as short as possible, and use EMI filters or ferrite beads on the input and output lines. Additionally, ensure that the PCB layout is designed to minimize radiation and conduction of EMI.
-
Yes, the SDS-80J can be used in a redundant or parallel configuration to achieve higher power outputs. However, it's essential to ensure that the devices are properly synchronized and that the output voltages are matched to prevent uneven current sharing.
-
To ensure safe operation, it's essential to follow proper safety precautions, such as providing adequate isolation between the input and output, using a fuse or circuit breaker to protect against overcurrent, and ensuring that the device is operated within its specified voltage and current ratings.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
SDS-80J Overview
Use the download button to access the SDS-80J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SDS-8,
or try a keyword search, such as DIN Connectors
About Same Sky
CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications.
CUI Devices is headquartered in Lake Oswego, Oregon.
