SDT01F05D05 - XP POWER

Description: Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input

Download SDT01F05D05 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SDT01F05D05 model

Email notifications will be applied after download.

Send part feedback

Symbol

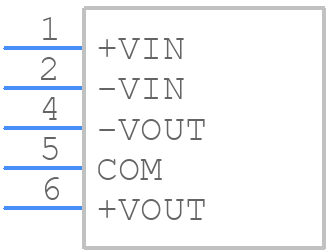

SDT01F05D05 - XP POWER - PCB symbol

PCB Footprints

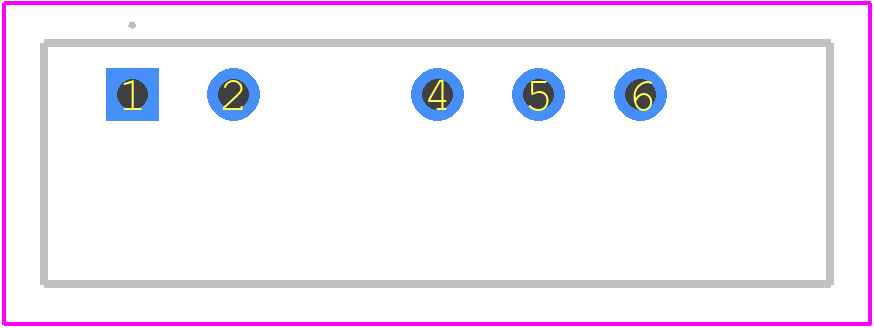

SDT01F05D05 - XP POWER PCB footprint - Other - Other - 6-SIP Module, 5 Leads_2026-2.2

Datasheet Download Datasheet
Stock & Prices Price & Stock for SDT01F05D05
Part Number SDT01F05D05
Manufacturer XP POWER
Pin Count 5
Part Category Power Supply
Package Category Other
Footprint Name Other - 6-SIP Module, 5 Leads_2026-2.2
Released Date Aug 30, 2026
Last Modified Date Aug 30, 2026 12:25 PM UTC
Pinout / Pin List Click Here (Member Only)

SDT01F05D05 Details

Manufacturer Part Number:
SDT01F05D05
Manufacturer:
XP Power

Trust Checks

Community Provided

System Verified

Community Approved

SDT01F05D05 Overview

Use the download button to access the SDT01F05D05 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SDT01, or try a keyword search, such as Fixed Inductors
