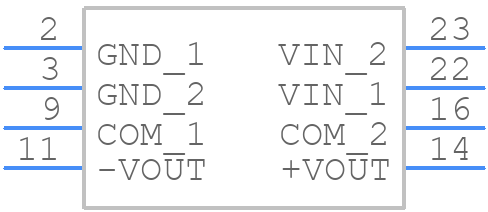

Symbol

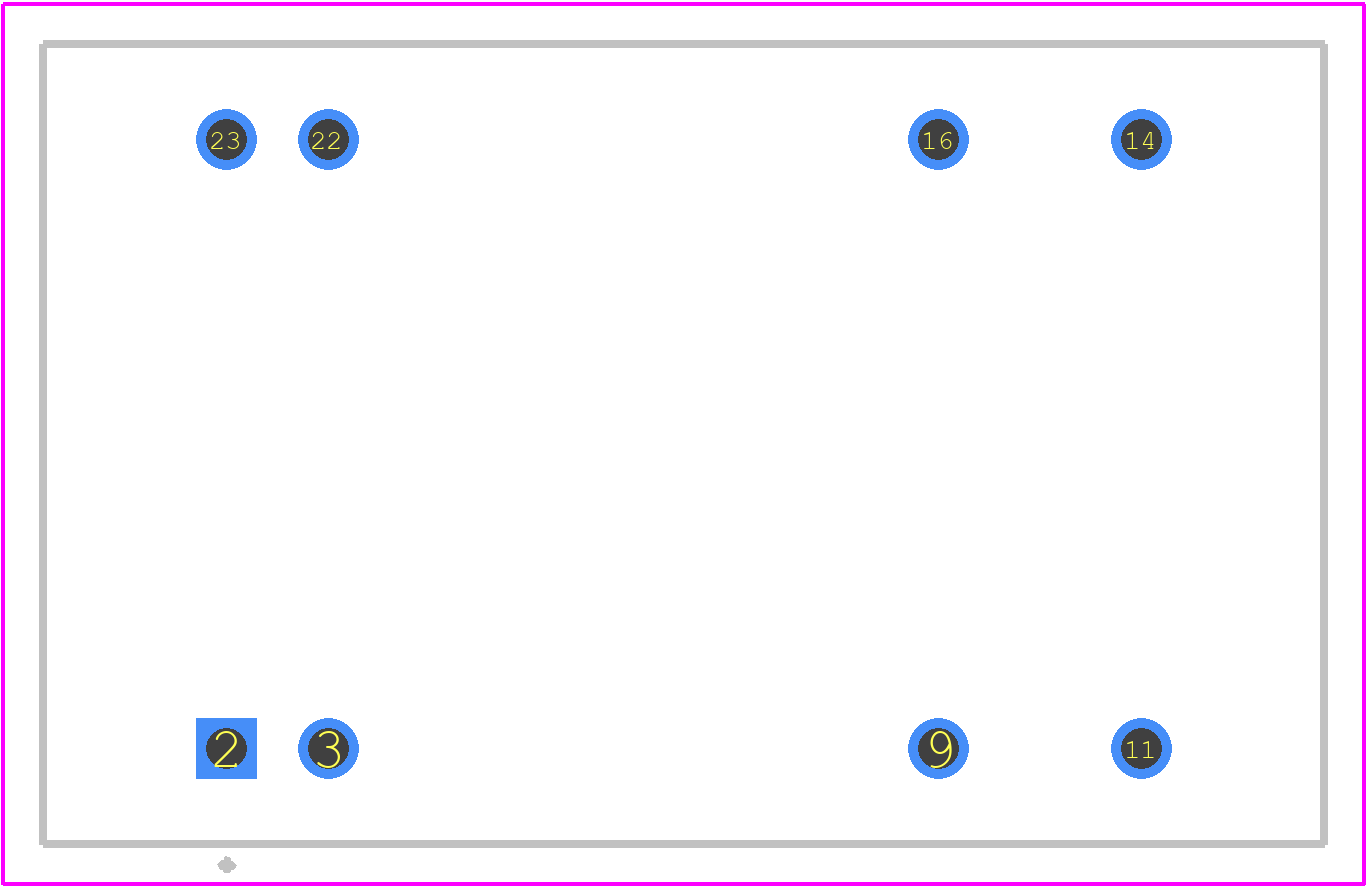

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SDU03D2415D
- Part Number SDU03D2415D
- Manufacturer Summit Electronics
- Pin Count 8
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - Compact DIP24_D
- Released Date May 26, 2026
- Last Modified Date May 26, 2026 2:23 PM UTC
- Pinout / Pin List Click Here (Member Only)
SDU03D2415D Details
-
Manufacturer Part Number:
SDU03D2415D
-
Manufacturer:
(Of No Interest)
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
SDU03D2415D Overview
Use the download button to access the SDU03D2415D schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SDU03,
or try a keyword search, such as Other Transistors
