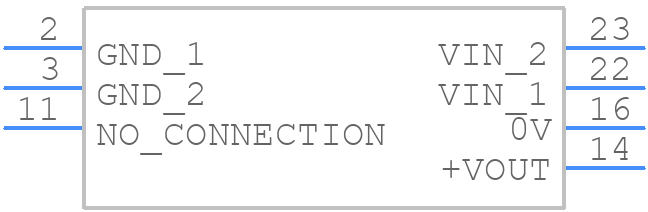

Symbol

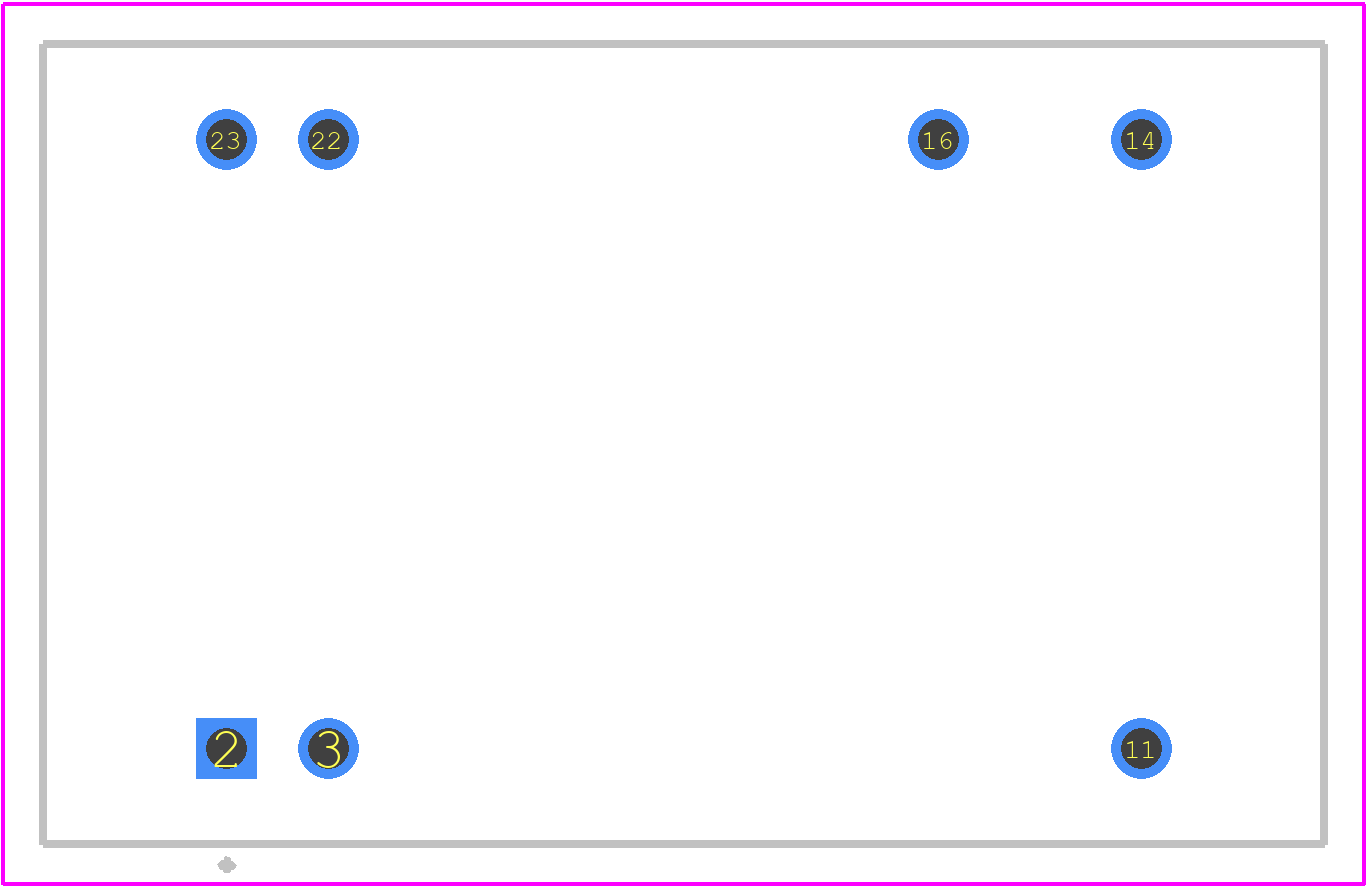

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SDU06D4812
- Part Number SDU06D4812
- Manufacturer Summit Electronics
- Pin Count 7
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - Compact DIP24_S_1
- Released Date May 27, 2026
- Last Modified Date May 27, 2026 11:59 AM UTC
- Pinout / Pin List Click Here (Member Only)
SDU06D4812 Details
-
Manufacturer Part Number:
SDU06D4812
-
Manufacturer:
(Of No Interest)
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
SDU06D4812 Overview
Use the download button to access the SDU06D4812 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SDU06,
or try a keyword search, such as Other Transistors
