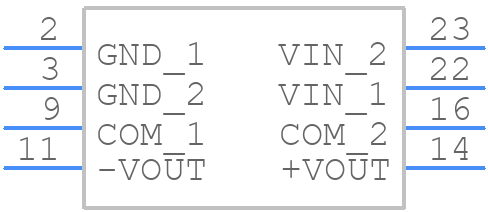

Symbol

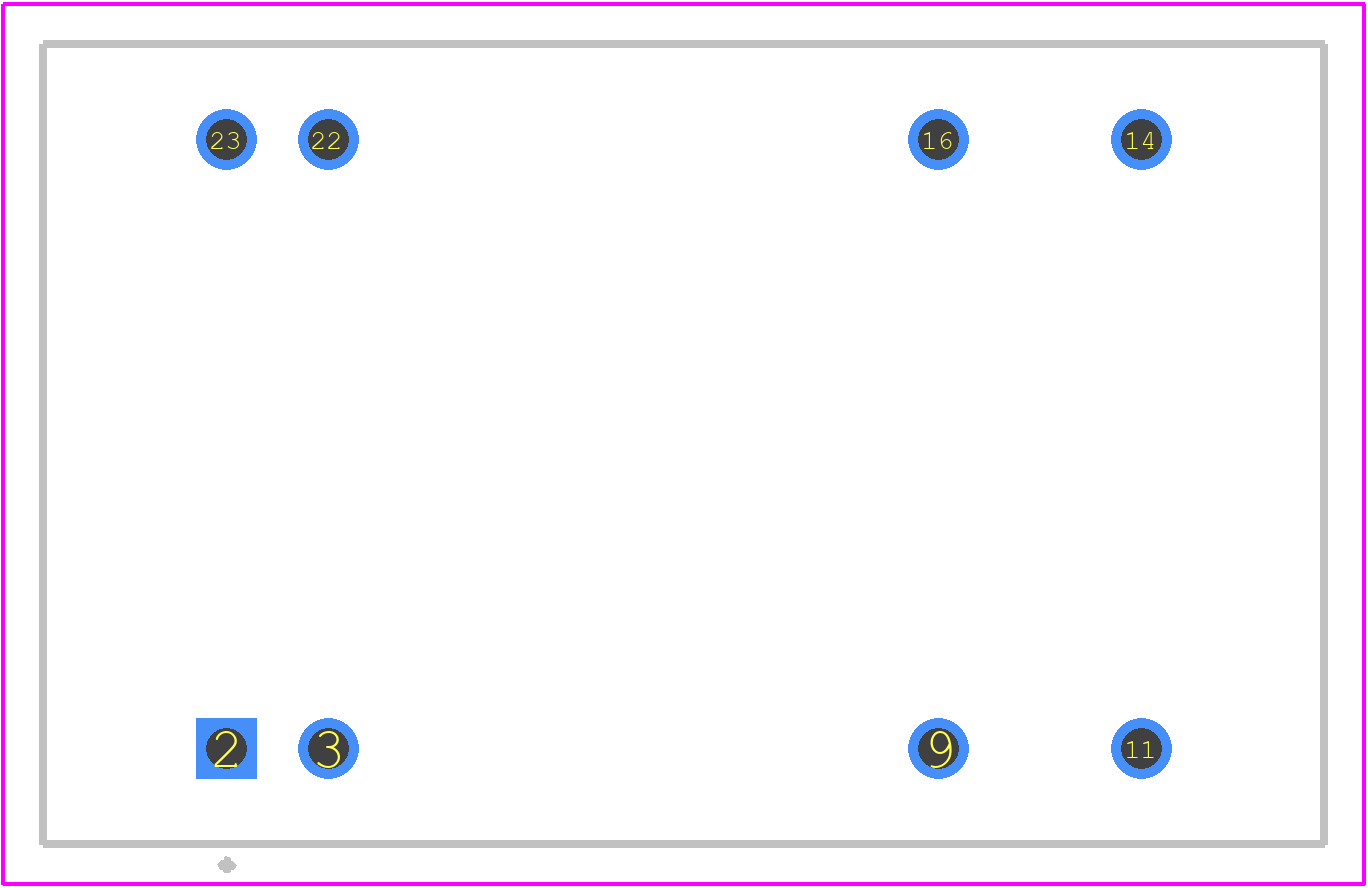

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SDU06P2415D
- Part Number SDU06P2415D
- Manufacturer Summit Electronics
- Pin Count 8
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - Compact DIP24_D
- Released Date May 28, 2026
- Last Modified Date May 28, 2026 10:50 AM UTC
- Pinout / Pin List Click Here (Member Only)
SDU06P2415D Details
-
Manufacturer Part Number:
SDU06P2415D
-
Manufacturer:
(Of No Interest)
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
SDU06P2415D Overview
Use the download button to access the SDU06P2415D schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SDU06,
or try a keyword search, such as Other Transistors
