Part Image

SDWK6TF-2405 - Summit Electronics

Description: 6W, DC/DC Power Converter , input voltage 24 , 5 VDC , Output Current 960 to 1200 mA , 78 % , Capacitive Load 1000uF , -40 °C ~ +105 °C

Download SDWK6TF-2405 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SDWK6TF-2405 model

Email notifications will be applied after download.

Send part feedback

Symbol

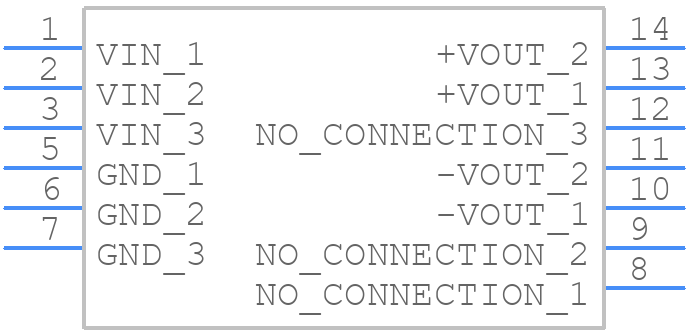

SDWK6TF-2405 - Summit Electronics - PCB symbol

PCB Footprints

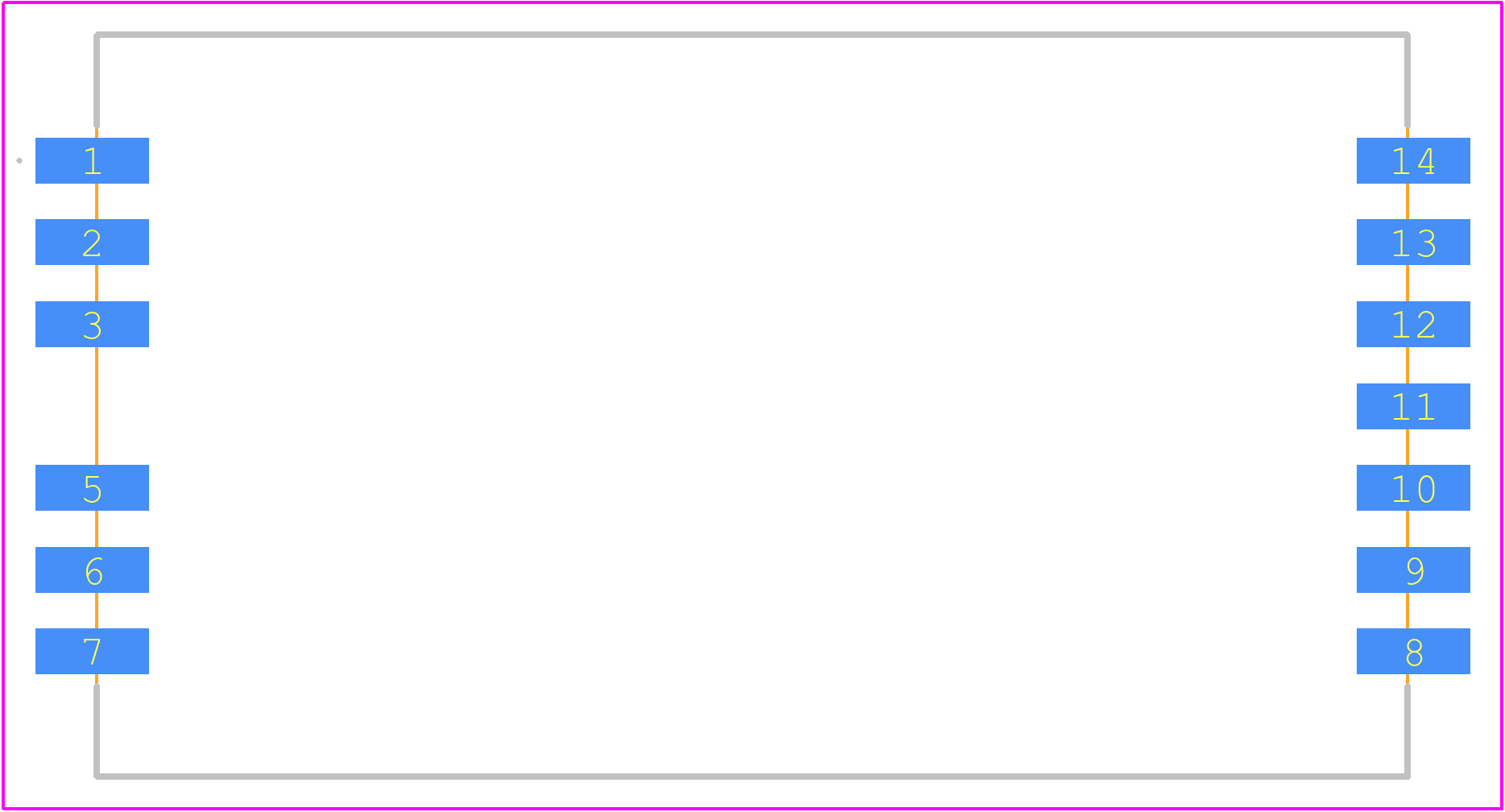

SDWK6TF-2405 - Summit Electronics PCB footprint - Other - Other - SMD-14

Datasheet Download Datasheet
Stock & Prices Price & Stock for SDWK6TF-2405
Part Number SDWK6TF-2405
Manufacturer Summit Electronics
Pin Count 13
Part Category Power Supply
Package Category Other
Footprint Name Other - SMD-14
Released Date May 29, 2026
Last Modified Date May 29, 2026 10:31 AM UTC
Pinout / Pin List Click Here (Member Only)

SDWK6TF-2405 Details

Manufacturer Part Number:
SDWK6TF-2405
Manufacturer:
(Of No Interest)

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SDWK6TF-2405 Overview

Use the download button to access the SDWK6TF-2405 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SDWK6, or try a keyword search
