4 X 4 MM, 0.90 MM, HALOGEN FREE AND ROHS COMPLIANT, QFN-20
Manufacturer:
Skyworks Solutions Inc
YTEOL:
0
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Gain:
32 dB
Input Power-Max (CW):
6 dBm
Operating Frequency-Max:
5850 MHz
Operating Frequency-Min:
5150 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
RF/Microwave Device Type:
NARROW BAND MEDIUM POWER
VSWR-Max:
6
SE5003L-R Frequently Asked Questions (FAQs)
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the antenna, and the RF traces should be kept as short as possible.
The SE5003L-R requires a 2.7V to 5.5V power supply. Ensure the voltage regulator is stable and can provide the required current. Also, ensure the bias resistors are correctly sized to provide the recommended bias voltage.
A 50-ohm matched antenna with a return loss of better than 10 dB is recommended. The antenna should be designed to operate at the desired frequency band and should be matched to the SE5003L-R's output impedance.
Check the power supply voltage, bias voltage, and current consumption. Verify the PCB layout and antenna design. Use a spectrum analyzer to measure the output power and spectral purity. Consult the datasheet and application notes for troubleshooting guidelines.
The SE5003L-R is rated for operation up to 85°C. However, the device's performance may degrade at higher temperatures. Ensure proper thermal management and consider using a heat sink if operating in high-temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SE5003L-R Overview

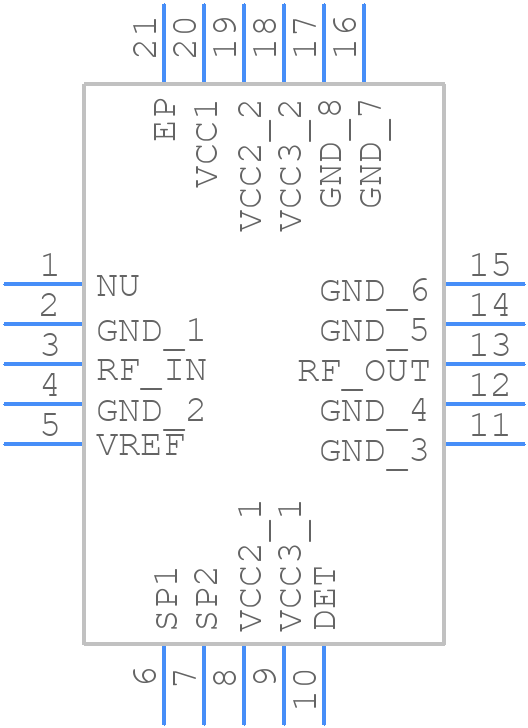

Use the download button to access the SE5003L-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SE500,
or try a keyword search, such as RF/Microwave Amplifiers
