SE95D,118 - NXP

Description: Board Mount Temperature Sensors I2C LOCAL +/- 1OC TS

Download SE95D,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

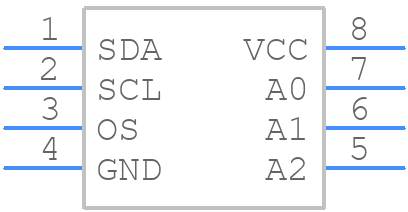

Symbol
SE95D,118 - NXP - PCB symbol
click to zoom
PCB Footprints
SE95D,118 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - so-8
click to zoom
3D Models
SE95D,118 - NXP - 3D model - Small Outline Packages - so-8
click to zoom

SE95D,118 Details

  • Manufacturer Part Number:

    SE95D,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    3.90 MM, PLASTIC, MS-012, SOT96-1, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT96-1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2 Cel

  • Additional Feature:

    THERMAL WATCHDOG

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    13

  • Number of Terminals:

    8

  • Operating Current-Max:

    1 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Termination Type:

    SOLDER

SE95D,118 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance matching to minimize signal reflections.
  • Use a reliable SPI interface with a clock frequency of 1-10 MHz, and ensure proper signal termination and noise filtering. Implement error checking and correction mechanisms, such as CRC and retransmission, to ensure data integrity.
  • The SE95D,118 is rated for operation from -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
  • Use a 50-ohm antenna with a quarter-wavelength monopole or dipole design. Optimize the antenna's radiation pattern and impedance matching for the specific application and frequency band.
  • Use a low-ESR capacitor (e.g., 100 nF) close to the power pins, and add a ferrite bead or a pi-filter to reduce noise and EMI. Ensure a clean and stable power supply to the SE95D,118.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SE95D,118 Overview

Use the download button to access the SE95D,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SE95D, or try a keyword search, such as Temperature Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
