Part Image

SE97BTP,547 - NXP

Description: Board Mount Temperature Sensors I2C - Temp Sensor

Download SE97BTP,547 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

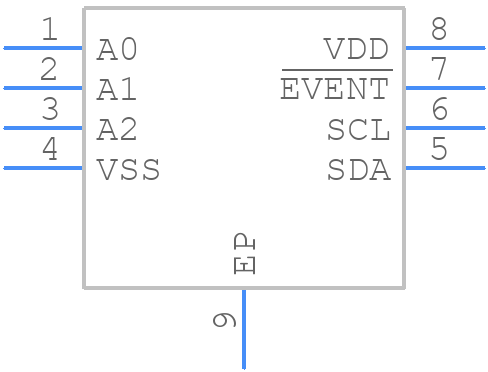

SE97BTP,547 - NXP - PCB symbol
click to zoom
PCB Footprints
SE97BTP,547 - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - hwson8
click to zoom
3D Models
SE97BTP,547 - NXP - 3D model - Small Outline No-lead - hwson8
click to zoom

SE97BTP,547 Details

  • Manufacturer Part Number:

    SE97BTP,547

  • Source Url Status Check Date:

    2013-06-14 00:00:00

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    HWSON-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT1069-2

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7.8

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    2 mm

  • Body Height:

    0.73 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.4 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

SE97BTP,547 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the antenna away from noisy components and ensure a 50-ohm impedance matching for optimal performance.
  • Implement error correction mechanisms like CRC and retransmission protocols. Use a robust modulation scheme like GFSK or MSK, and consider using a spread spectrum technique like frequency hopping or direct sequence spread spectrum.
  • The maximum transmission distance depends on the environment, antenna design, and transmission power. In ideal conditions, the SE97BTP,547 can achieve a range of up to 1 km. However, this can be affected by obstacles, interference, and regulatory limitations.
  • Use the module's built-in power-saving features like sleep modes and adaptive frequency scaling. Optimize your application's duty cycle, and consider using a low-power microcontroller to minimize overall system power consumption.
  • Yes, the antenna design is critical for optimal performance. Use a 50-ohm antenna with a quarter-wave monopole or a dipole design. Ensure the antenna is matched to the module's output impedance, and consider using a balun or a matching network for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SE97BTP,547 Overview

Use the download button to access the SE97BTP,547 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SE97B, or try a keyword search, such as Temperature Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
