SEAF8-10-05.0-S-08-3 Frequently Asked Questions (FAQs)

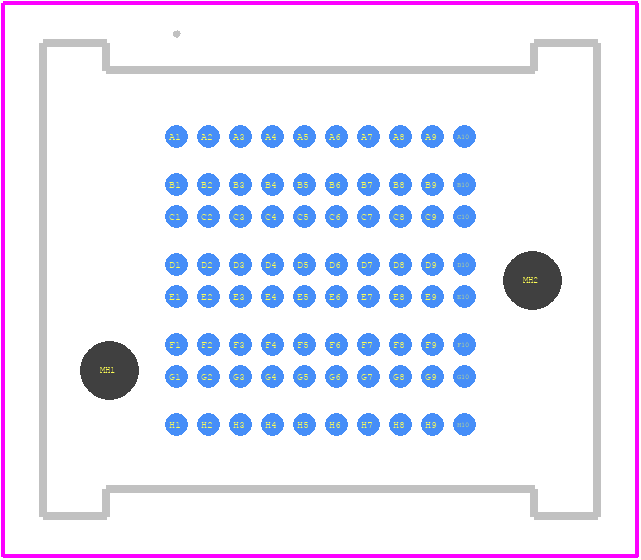

• What is the recommended PCB layout and land pattern for SEAF8-10-05.0-S-08-3?
  Samtec provides a recommended PCB layout and land pattern in their Application Notes document (AN-105) and also on their website. It's essential to follow these guidelines to ensure proper mating and to prevent damage to the connector.
• Can I use SEAF8-10-05.0-S-08-3 in a high-vibration environment?
  Yes, the SEAF8-10-05.0-S-08-3 is designed to withstand high-vibration environments. Samtec's SEAF series connectors are tested to meet the IEC 61373 Cat 2 standard for vibration resistance. However, it's essential to follow proper mounting and installation procedures to ensure the connector's reliability.
• Is SEAF8-10-05.0-S-08-3 compatible with lead-free soldering processes?
  Yes, the SEAF8-10-05.0-S-08-3 is compatible with lead-free soldering processes. Samtec's connectors are designed to meet the requirements of the RoHS directive and can withstand the higher temperatures associated with lead-free soldering.
• What is the maximum operating temperature range for SEAF8-10-05.0-S-08-3?
  The maximum operating temperature range for SEAF8-10-05.0-S-08-3 is -55°C to +125°C. However, it's essential to note that the connector's performance may degrade at extreme temperatures, and Samtec recommends consulting their application notes for specific guidance.
• Can I use SEAF8-10-05.0-S-08-3 in a humid or wet environment?
  The SEAF8-10-05.0-S-08-3 is not designed for use in humid or wet environments. Samtec's SEAF series connectors are not sealed or waterproof, and exposure to moisture can compromise their performance and reliability. If you need a connector for a humid or wet environment, consider using a sealed or waterproof connector from Samtec's other product lines.
