Samtec provides a recommended PCB layout and land pattern in their Application Notes document (AN-105) and also on their website. It's essential to follow these guidelines to ensure proper mating and to prevent damage to the connector.
Yes, the SEAF8-10-05.0-S-10-3 is designed to withstand high-vibration environments. Samtec's SEAF series connectors are tested to meet the IEC 61373 Cat. II vibration standard. However, it's recommended to consult with Samtec's application engineers to ensure the connector meets the specific vibration requirements of your application.
Yes, the SEAF8-10-05.0-S-10-3 is compatible with lead-free soldering processes. Samtec's connectors are designed to meet the requirements of the RoHS directive and can withstand the higher temperatures associated with lead-free soldering.
The maximum operating temperature range for SEAF8-10-05.0-S-10-3 is -55°C to +125°C. However, it's essential to note that the temperature range may vary depending on the specific application and the materials used in the connector.
The SEAF8-10-05.0-S-10-3 is not designed to be used in humid or wet environments. Samtec's SEAF series connectors are not sealed or waterproof, and exposure to moisture can compromise their performance and reliability. If your application requires a connector that can withstand humid or wet conditions, consider using a sealed or waterproof connector.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SEAF8-10-05.0-S-10-3 Overview

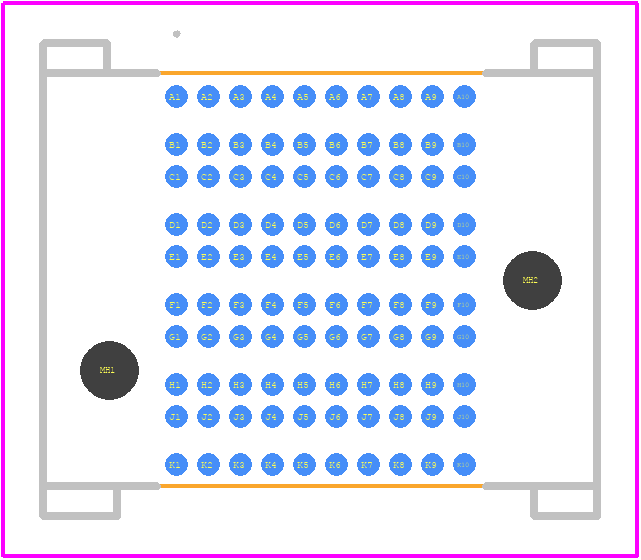

Use the download button to access the SEAF8-10-05.0-S-10-3 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SEAF8,
or try a keyword search, such as Headers and Edge Type Connectors
