SEAFP-20-01-L-10-RA-WT footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

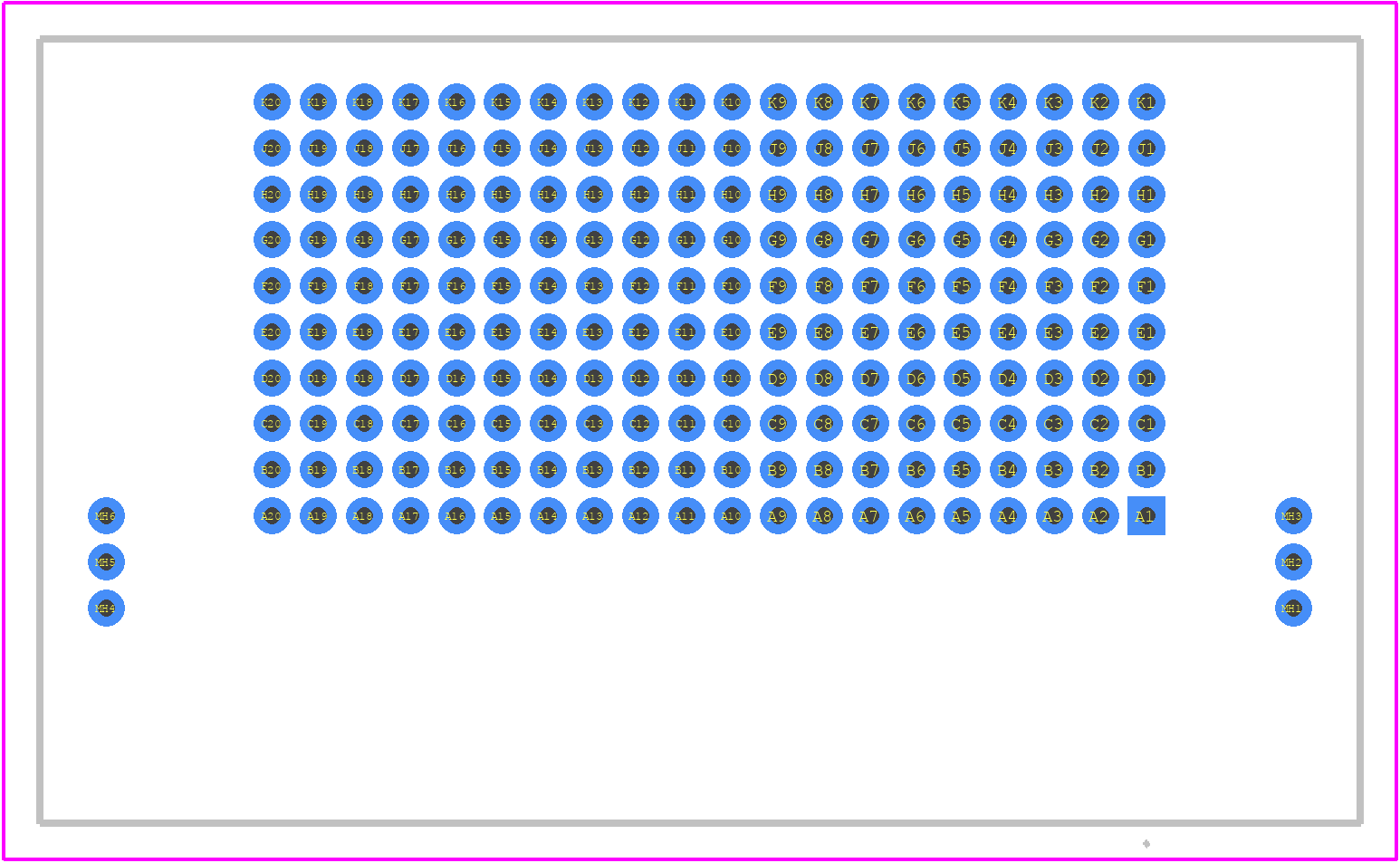

SEAFP-20-01-L-10-RA-WT - SAMTEC PCB footprint - Other - Other - SEAFP-20-01-L-10-RA-WT-1

click to zoom

3D Models

SEAFP-20-01-L-10-RA-WT - SAMTEC - 3D model - Other - SEAFP-20-01-L-10-RA-WT-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SEAFP-20-01-L-10-RA-WT
Part Number SEAFP-20-01-L-10-RA-WT
Manufacturer SAMTEC
Pin Count 206
Part Category Connector
Package Category Other
Footprint Name Other - SEAFP-20-01-L-10-RA-WT-1
Released Date May 30, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SEAFP-20-01-L-10-RA-WT Details

Manufacturer Part Number:
SEAFP-20-01-L-10-RA-WT
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Material:
COPPER ALLOY
JESD-609 Code:
e3

Trust Checks

Community Provided

System Verified

Community Approved

SEAFP-20-01-L-10-RA-WT Overview

Use the download button to access the SEAFP-20-01-L-10-RA-WT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SEAFP, or try a keyword search, such as Headers and Edge Type Connectors
