SEC1210-I/PV-URT - Microchip

Description: Microchip SEC1210-I/PV-URT, Multiprotocol Transceiver, 12Mbit/s, 24-Pin QFN

Download SEC1210-I/PV-URT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

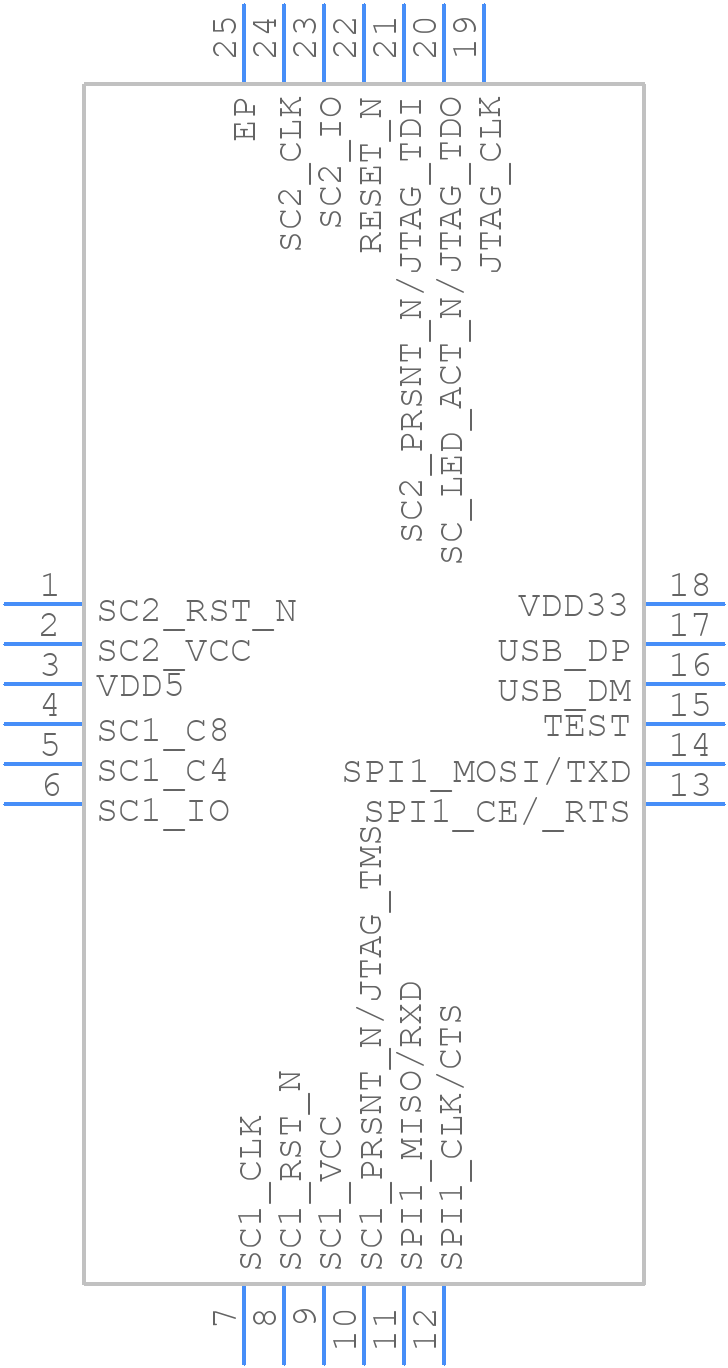

Symbol
SEC1210-I/PV-URT - Microchip - PCB symbol
click to zoom
PCB Footprints
SEC1210-I/PV-URT - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SEC1210/PV-UR2
click to zoom
3D Models
SEC1210-I/PV-URT - Microchip - 3D model - Quad Flat No-Lead - SEC1210/PV-UR2
click to zoom

SEC1210-I/PV-URT Details

  • Manufacturer Part Number:

    SEC1210-I/PV-URT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    QFN-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2016-09-28

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Bus Compatibility:

    SPI; UART; USB

  • Clock Frequency-Max:

    48 MHz

  • Data Transfer Rate-Max:

    1.5 MBps

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.2SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.6 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

SEC1210-I/PV-URT Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the SEC1210 datasheet (section 5.1) and in the SEC1210 Evaluation Board User's Guide. It's essential to follow these guidelines to minimize noise, ensure proper thermal management, and optimize performance.
  • The SEC1210 is a highly configurable device. Refer to the SEC1210 datasheet (section 4) and the SEC1210 Configuration Guide for detailed information on configuring the device for your specific application. You can also use Microchip's Power Designer software to help with configuration and simulation.
  • The SEC1210 has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the thermal design guidelines in the SEC1210 datasheet (section 5.2). You can also use thermal simulation tools like FloTHERM or ANSYS Icepak to optimize your design.
  • Microchip provides a troubleshooting guide in the SEC1210 datasheet (section 7) and in the SEC1210 Evaluation Board User's Guide. You can also use Microchip's Power Designer software to simulate and debug your design. If you're still having issues, contact Microchip's technical support for assistance.
  • The SEC1210 is designed to meet EMI and EMC standards, but it's still important to follow good design practices to minimize emissions and ensure immunity. Refer to the SEC1210 datasheet (section 5.3) and the SEC1210 EMI/EMC Application Note for guidance on designing a compliant system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SEC1210-I/PV-URT Overview

Use the download button to access the SEC1210-I/PV-URT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SEC12, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
