SEC1210T-I/PV-URT - Microchip

Description: I/O Controller Interface IC Smart Card Bridge to UART Interface

Download SEC1210T-I/PV-URT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

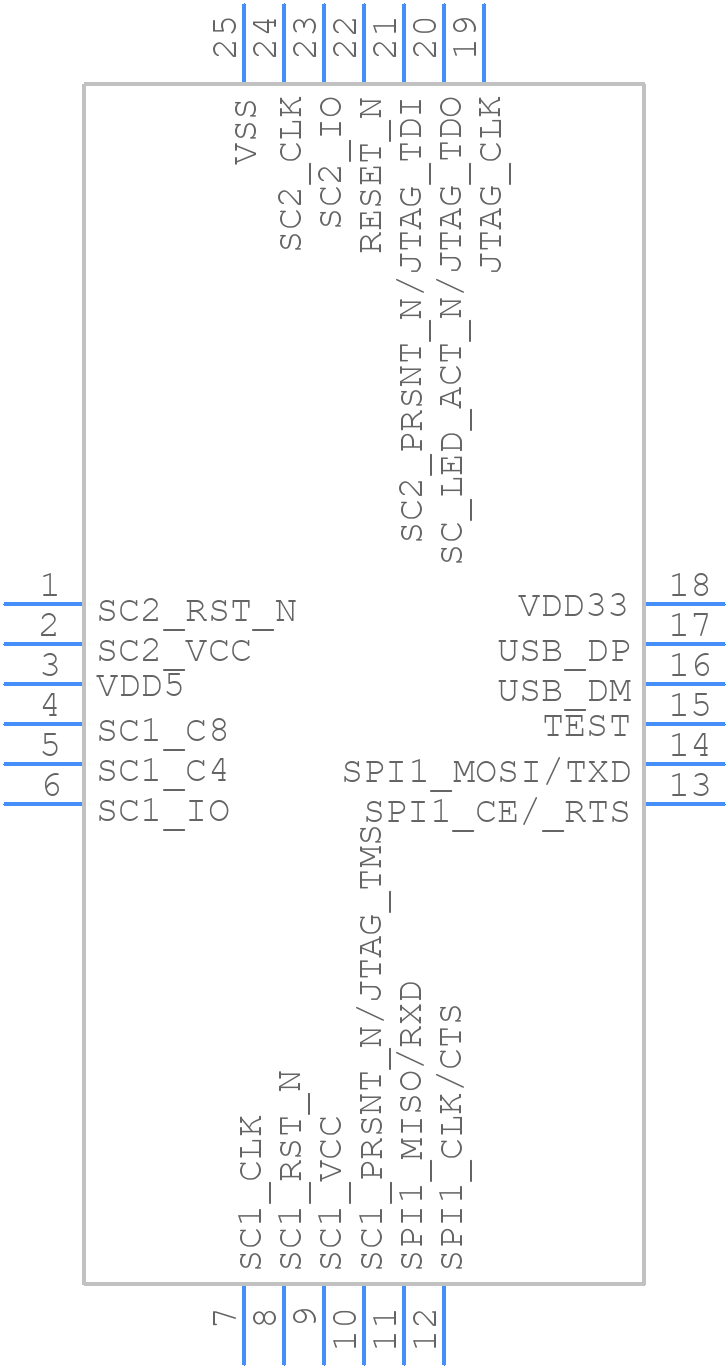

SEC1210T-I/PV-URT - Microchip - PCB symbol
click to zoom
PCB Footprints
SEC1210T-I/PV-URT - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-VFQFN Exposed Pad
click to zoom
3D Models
SEC1210T-I/PV-URT - Microchip - 3D model - Quad Flat No-Lead - 24-VFQFN Exposed Pad
click to zoom

SEC1210T-I/PV-URT Details

  • Manufacturer Part Number:

    SEC1210T-I/PV-URT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    QFN-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2016-09-28

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Bus Compatibility:

    SPI; UART; USB

  • Clock Frequency-Max:

    48 MHz

  • Data Transfer Rate-Max:

    1.5 MBps

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.2SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.6 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

SEC1210T-I/PV-URT Frequently Asked Questions (FAQs)

  • Microchip recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, keeping the thermal pad connected to the ground plane and using thermal vias can help reduce thermal resistance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the voltage on the VIN pin to 5V to ensure reliable operation and prevent damage to the device.
  • To configure the SEC1210T-I/PV-URT for low-power mode, set the EN pin low, and ensure that the VIN pin is below the undervoltage lockout threshold (UVLO). This will reduce the device's power consumption to a minimum.
  • Microchip recommends using a 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric type, placed as close as possible to the VIN pin, to filter out noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SEC1210T-I/PV-URT Overview

Use the download button to access the SEC1210T-I/PV-URT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SEC12, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
