SEI-110-02-GF-S-AT footprint, schematic symbol and 3D model by SAMTEC

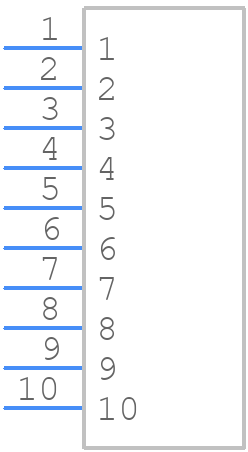

Symbol

click to zoom

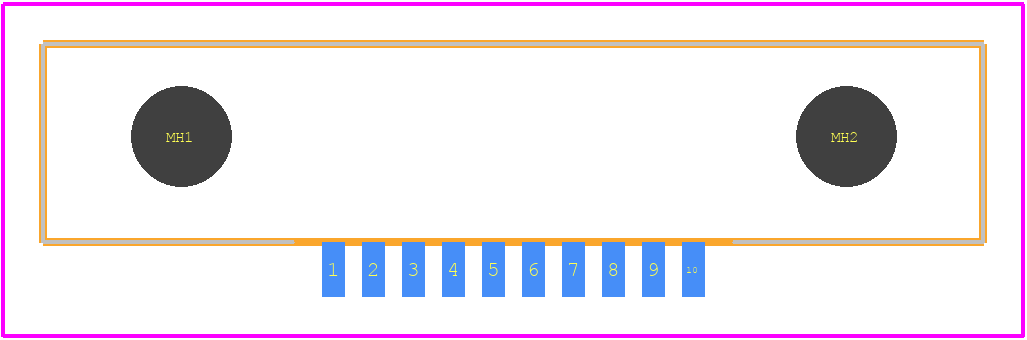

PCB Footprints

SEI-110-02-GF-S-AT - SAMTEC PCB footprint - Other - Other - SEI-110-02-GF-S-AT-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SEI-110-02-GF-S-AT
Part Number SEI-110-02-GF-S-AT
Manufacturer SAMTEC
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - SEI-110-02-GF-S-AT-2
Released Date Mar 5, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SEI-110-02-GF-S-AT Details

Manufacturer Part Number:
SEI-110-02-GF-S-AT
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
4 Weeks, 4 Days
Manufacturer:
Samtec Inc
YTEOL:
4
Connector Type:
CARD EDGE CONNECTOR
Contact Finish Mating:
GOLD FLASH (3) OVER NICKEL
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
Terminal Pitch:
1 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
10

SEI-110-02-GF-S-AT Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the SEI-110-02-GF-S-AT connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the SEI-110-02-GF-S-AT connector is 125°C (257°F) according to Samtec's datasheet and application notes.
The SEI-110-02-GF-S-AT connector is not designed for use in wet or humid environments. Samtec recommends using their sealed or waterproof connectors for such applications.
The recommended mating cycle for the SEI-110-02-GF-S-AT connector is 500-1000 cycles according to Samtec's application notes and reliability testing.
