SEPS-4-272+ - Mini-Circuits

Description: Signal Conditioning 4 Ways Microstrip Power Splitter, 690 - 2700 MHz, 50?

Download SEPS-4-272+ Model

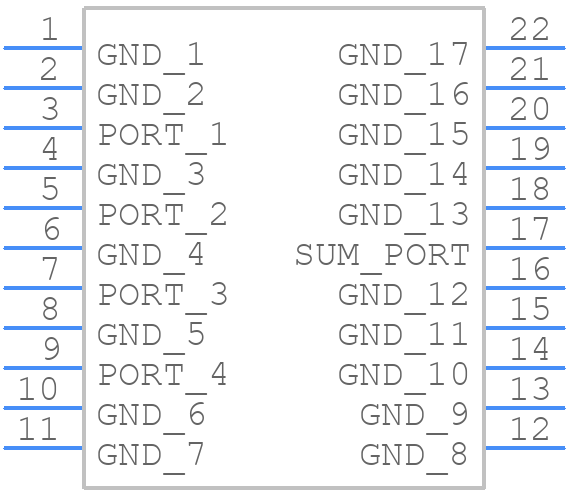

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

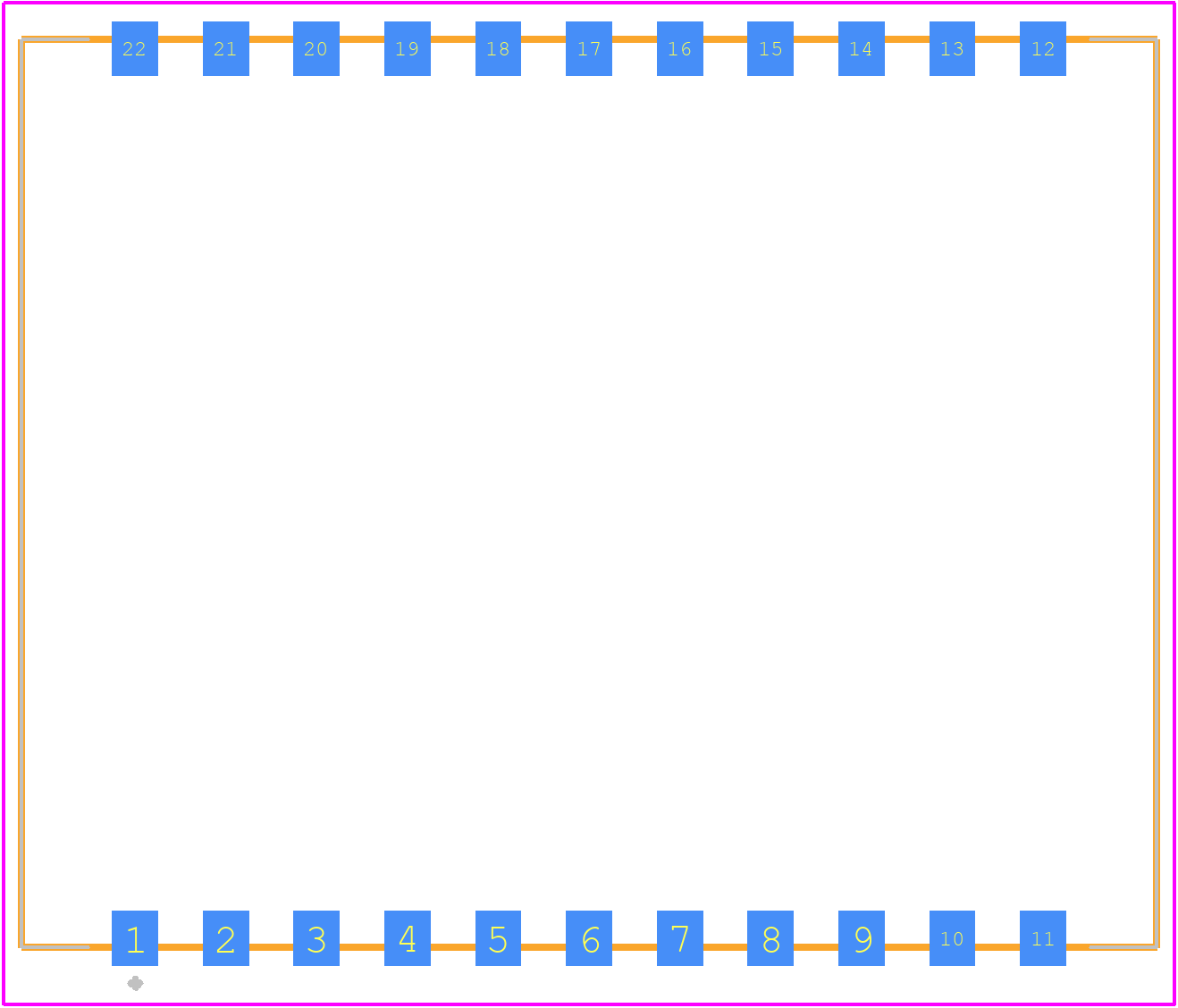

SEPS-4-272+ - Mini-Circuits PCB footprint - Other - Other - SEPS-4-272+-2
click to zoom
3D Models
SEPS-4-272+ - Mini-Circuits  - 3D model - Other - SEPS-4-272+-2
click to zoom

SEPS-4-272+ Details

  • Manufacturer Part Number:

    SEPS-4-272+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SURFACE MOUNT, JF1258, 22 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.8

  • Additional Feature:

    ISOLATION-MIN (DB):15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    36.99 dBm

  • Insertion Loss-Max:

    2.6 dB

  • Isolation-Min:

    15 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    22

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    690 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    DILCC22,1

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Supply Current-Max:

    1000 mA

  • Surface Mount:

    YES

  • VSWR-Max:

    1.5
