SEPS-8-272+ Frequently Asked Questions (FAQs)

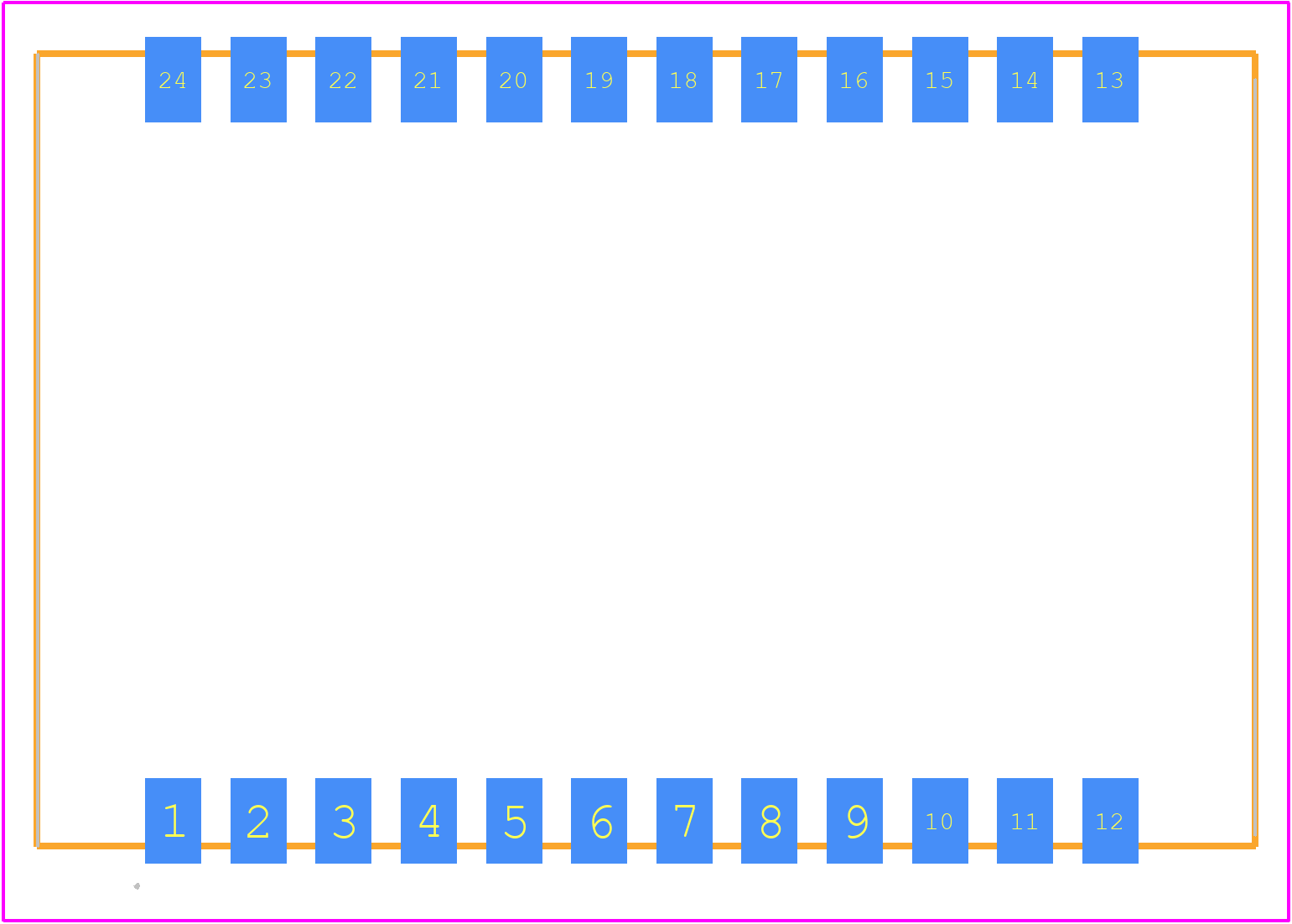

• What is the recommended PCB layout and footprint for SEPS-8-272+?
  Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and mechanical stability.
• How do I control the switch module? What are the control voltage and current requirements?
  The SEPS-8-272+ is controlled using a single-pin TTL-compatible control input. The recommended control voltage is 0-5V, and the current requirement is typically in the range of 1-5mA. It's essential to ensure that the control signal is clean and free from noise to prevent unintended switching.
• What is the maximum operating frequency of the SEPS-8-272+?
  While the datasheet specifies a maximum operating frequency of 2.7 GHz, the actual frequency performance may vary depending on the specific application and PCB layout. In general, the switch module can operate up to 3 GHz or more with proper design and layout considerations.
• How do I ensure reliable switching and minimize wear-out?
  To ensure reliable switching and minimize wear-out, it's essential to follow proper switching protocols, such as using a soft-start or ramp-up sequence, and avoiding hot-switching. Additionally, the switch module should be operated within the recommended temperature range, and the control signal should be clean and free from noise.
• What is the typical insertion loss and isolation of the SEPS-8-272+?
  The typical insertion loss of the SEPS-8-272+ is around 0.5-1.5 dB, depending on the frequency and operating conditions. The isolation is typically greater than 40 dB up to 2.7 GHz. However, actual performance may vary depending on the specific application and PCB layout.
