Coilcraft provides a recommended land pattern for the SER2011-202MLB in their documentation, which can be found on their website. The recommended land pattern is designed to ensure optimal performance and reliability of the inductor.
The SER2011-202MLB is rated for operation up to 125°C, but it's recommended to derate the current rating at higher temperatures. Coilcraft provides a temperature derating curve in their documentation, which can be used to determine the maximum current rating at a given temperature.
To prevent damage during PCB assembly, it's recommended to handle the SER2011-202MLB by the body, avoiding touching the leads or core. It's also recommended to use a vacuum pickup or tweezers to handle the component, and to avoid bending or flexing the leads.
The SER2011-202MLB is designed to withstand moderate vibration, but it's recommended to consult with Coilcraft or perform additional testing to ensure the component can withstand the specific vibration requirements of your application.
The ESR of the SER2011-202MLB can be determined by measuring the impedance of the inductor at high frequency (e.g. 100 kHz) and calculating the ESR using the measured impedance and inductance values. Coilcraft also provides ESR data in their documentation for reference.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SER2011-202MLB Overview

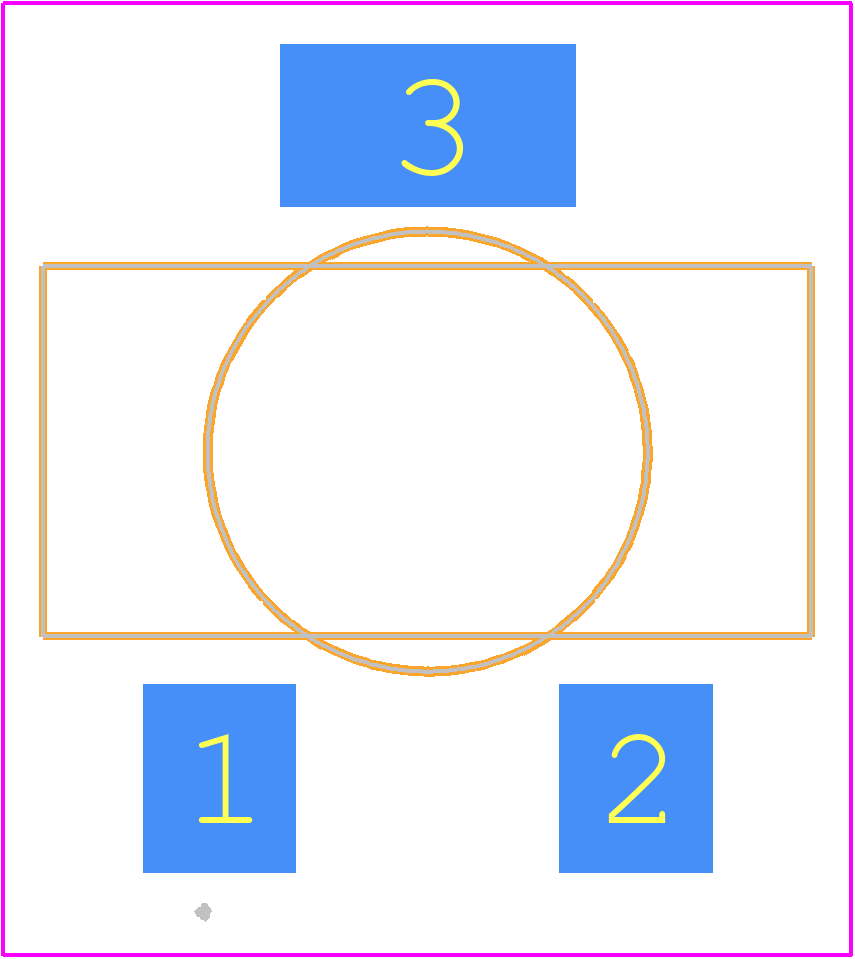

Use the download button to access the SER2011-202MLB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SER20,
or try a keyword search, such as Fixed Inductors
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
