SER2011-202MLD - COILCRAFT

Description: COILCRAFT - SER2011-202MLD - INDUCTOR, 2UH, 40A, 20%, PWR, 56MHZ

Download SER2011-202MLD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SER2011-202MLD - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

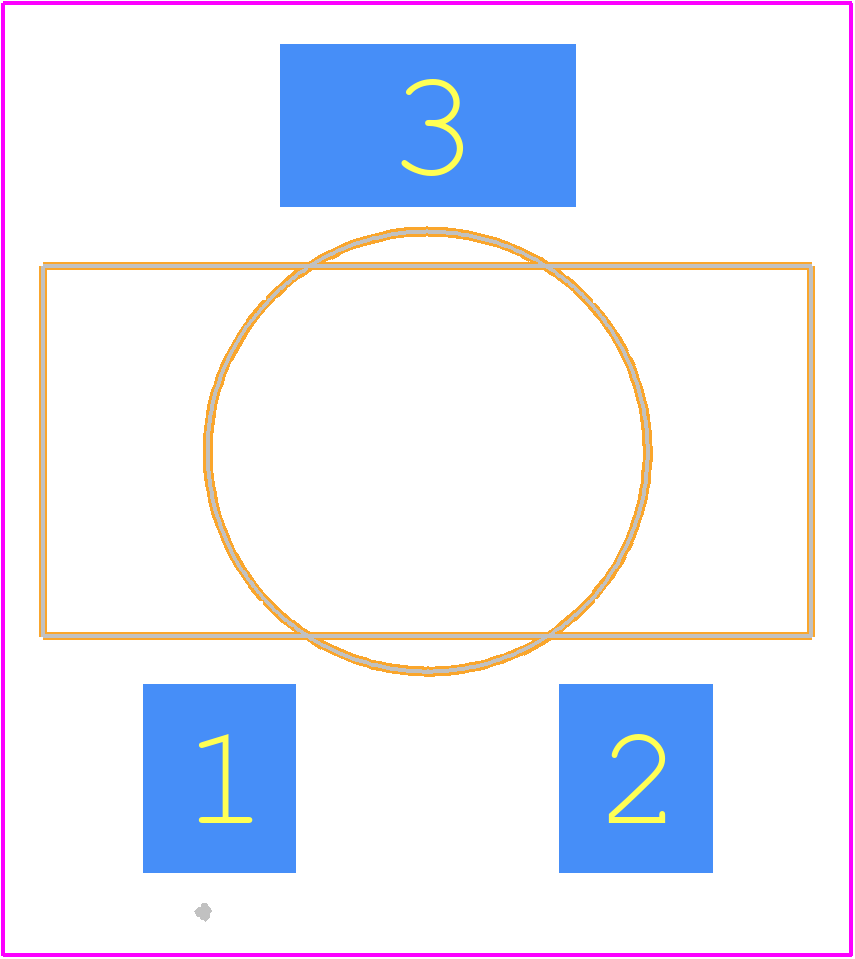

SER2011-202MLD - COILCRAFT PCB footprint - Other - Other - SER2011-202MLD-1
click to zoom
3D Models
SER2011-202MLD - COILCRAFT - 3D model - Other - SER2011-202MLD-1
click to zoom

SER2011-202MLD Details

  • Manufacturer Part Number:

    SER2011-202MLD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    7.8

  • Case/Size Code:

    7636

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.00134 Ω

  • Inductance-Nom (L):

    2 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    10.67 mm

  • Package Length:

    19.18 mm

  • Package Style:

    SMT

  • Package Width:

    9.27 mm

  • Packing Method:

    TR, Embossed Plastic, 13 Inch

  • Rated Current-Max:

    40 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    56 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    GULL WING

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

SER2011-202MLD Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SER2011-202MLD is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a non-solder mask defined (NSMD) pad shape.
  • The SER2011-202MLD has a maximum operating temperature of 125°C, but it's recommended to derate the current rating at high temperatures. Consult the datasheet for specific derating information.
  • Handle the SER2011-202MLD by the body, avoiding touching the leads or core. Use a vacuum pickup or tweezers to handle the component, and avoid bending or flexing the leads.
  • The ESR of the SER2011-202MLD is not explicitly stated in the datasheet, but it can be estimated to be around 0.1-0.2 ohms based on the inductor's design and materials.
  • The SER2011-202MLD is designed for high-frequency applications, but its performance may degrade above 100 MHz. Consult the datasheet for specific frequency characteristics and consider using a different inductor if your application requires higher frequencies.
