- Part Number SER2211-532MED
- Manufacturer COILCRAFT
- Pin Count 3
- Part Category Inductor
- Package Category Other

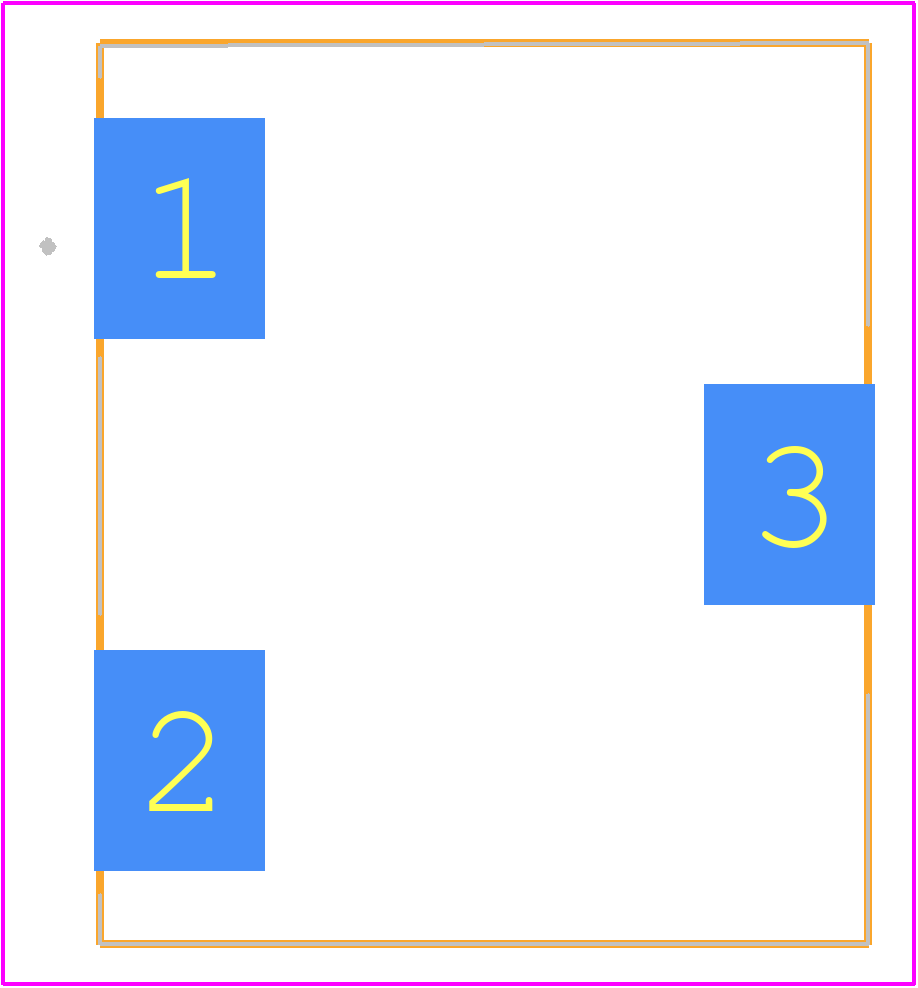

- Footprint Name Other - SER2211-532MED-2
- Released Date Jan 19, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SER2211-532MED Details
-
Manufacturer Part Number:
SER2211-532MED
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
CHIP
-
ECCN Code:
EAR99
-
HTS Code:
8504.50.80.00
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
6.6
-
Case/Size Code:
8976
-
Construction:
Rectangular
-
Core Material:
FERRITE
