SER2915H-103KL - COILCRAFT

Description: Fixed Inductors SER2915H Hi Current 10 uH 10 % 30 A

Download SER2915H-103KL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SER2915H-103KL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

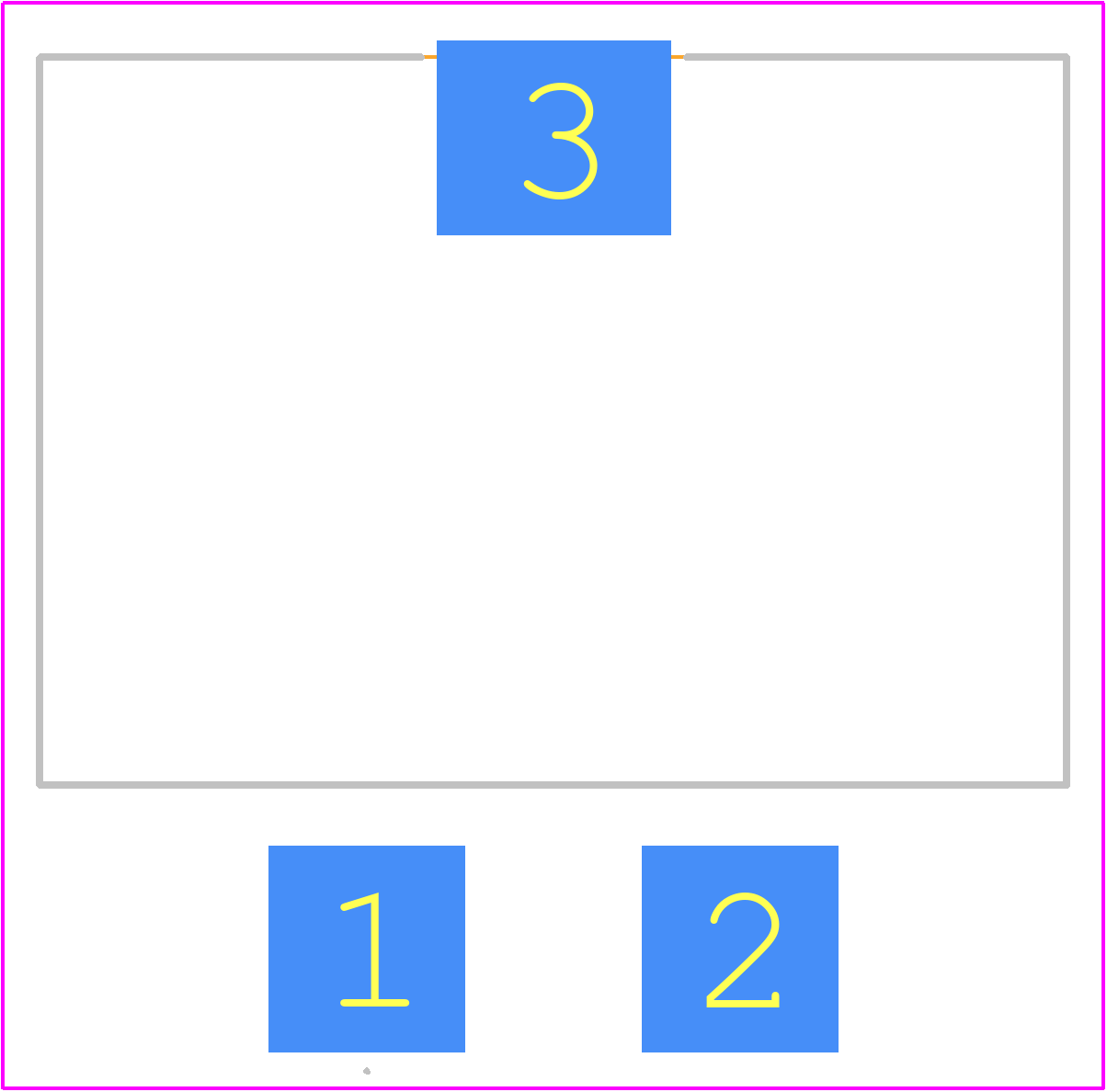

SER2915H-103KL - COILCRAFT PCB footprint - Other - Other - 27.9mm x 19.8mm x 15.36mm
click to zoom
3D Models
SER2915H-103KL - COILCRAFT - 3D model - Other - 27.9mm x 19.8mm x 15.36mm
click to zoom

SER2915H-103KL Details

  • Manufacturer Part Number:

    SER2915H-103KL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.6

  • Core Material:

    FERRITE

  • DC Resistance:

    0.00205 Ω

  • Inductance-Nom (L):

    10 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    15.36 mm

  • Package Length:

    27.9 mm

  • Package Style:

    SMT

  • Package Width:

    19.8 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    30 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    15 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Placement:

    SINGLE IN-LINE

  • Terminal Shape:

    GULL WING

  • Test Frequency:

    0.5 MHz

  • Tolerance:

    10%

SER2915H-103KL Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SER2915H-103KL is a rectangular pad with a size of 3.8 mm x 2.5 mm, with a non-solder mask defined (NSMD) pad shape.
  • The SER2915H-103KL has a maximum operating temperature of 125°C. Ensure that the PCB design and layout provide adequate thermal relief, and consider using thermal vias or thermal pads to dissipate heat.
  • The recommended soldering profile for the SER2915H-103KL is a reflow soldering process with a peak temperature of 260°C, and a dwell time of 20-40 seconds above 220°C.
  • Yes, the SER2915H-103KL is suitable for high-frequency applications up to 1 GHz. However, ensure that the PCB design and layout are optimized for high-frequency performance, and consider using a shielded inductor or a ferrite bead to minimize EMI.
  • To ensure reliability in harsh environments, consider using a conformal coating or potting compound to protect the inductor from moisture and contaminants. Also, ensure that the PCB design and layout are optimized for thermal and mechanical stress.
