SER2915H-153KL - COILCRAFT

Description: INDUCTOR, 15UH, 30A, PWR, 12MHZ

Download SER2915H-153KL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SER2915H-153KL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

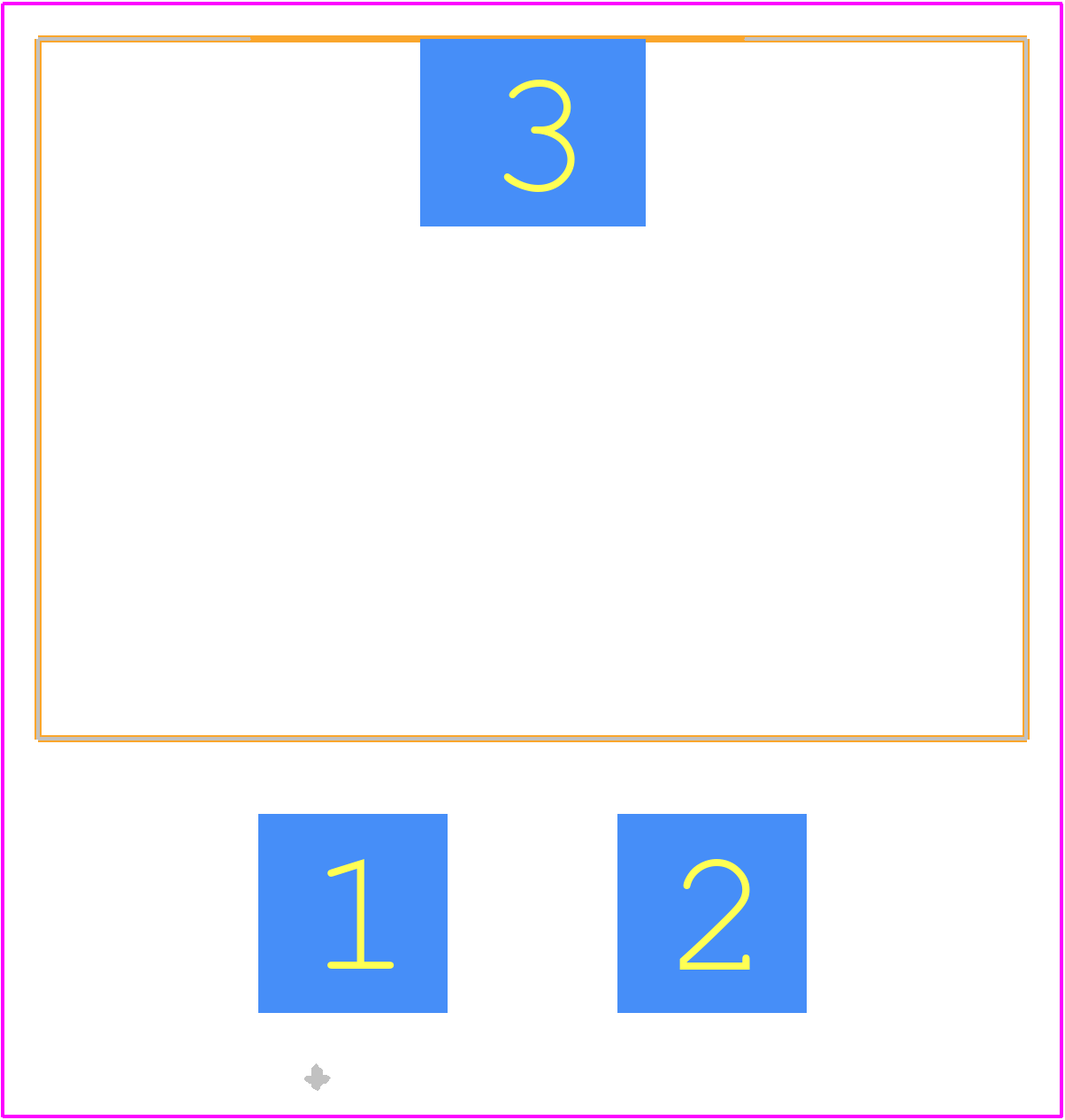

SER2915H-153KL - COILCRAFT PCB footprint - Other - Other - SER2915H-153KL-4
click to zoom

SER2915H-153KL Details

  • Manufacturer Part Number:

    SER2915H-153KL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.6

  • Core Material:

    FERRITE

  • DC Resistance:

    0.00205 Ω

  • Inductance-Nom (L):

    15 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    15.36 mm

  • Package Length:

    27.9 mm

  • Package Style:

    SMT

  • Package Width:

    19.8 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    30 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    12 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn96.5Ag3.5)

  • Terminal Placement:

    SINGLE IN-LINE

  • Terminal Shape:

    GULL WING

  • Test Frequency:

    0.5 MHz

  • Tolerance:

    10%

SER2915H-153KL Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SER2915H-153KL can be found in Coilcraft's application note AN-327, which provides a detailed guide for PCB layout and land pattern design.
  • The SER2915H-153KL has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate airflow, using thermal vias, and keeping the component away from heat sources.
  • The SRF of the SER2915H-153KL is not explicitly stated in the datasheet. However, Coilcraft provides an SRF calculator tool on their website, which can be used to estimate the SRF based on the inductor's characteristics.
  • The SER2915H-153KL is a commercial-grade inductor, but Coilcraft offers equivalent high-reliability versions, such as the SER2915H-153KL-T, which meets the requirements of MIL-PRF-83446 and is suitable for aerospace and high-reliability applications.
  • The saturation current of the SER2915H-153KL can be determined by reviewing the inductor's DC current rating and the application's specific requirements. Coilcraft's application note AN-327 provides guidance on calculating the saturation current.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SER2915H-153KL Overview

Use the download button to access the SER2915H-153KL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SER29, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
