SER2915L-153KL - COILCRAFT

Description: COILCRAFT - SER2915L-153KL - INDUCTOR, PWR, 15UH, 30A, 0.1, 15MHZ

Download SER2915L-153KL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SER2915L-153KL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

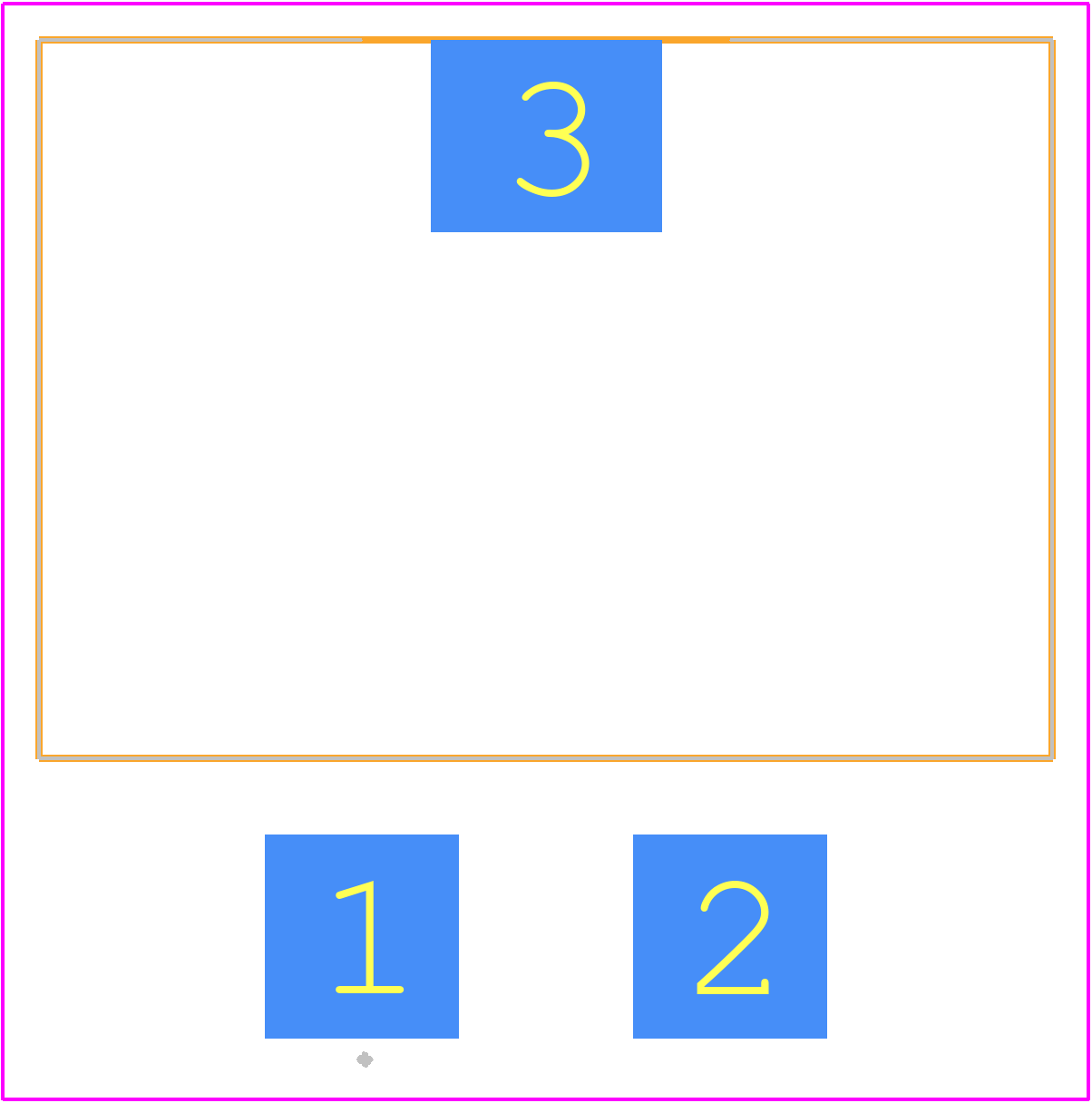

SER2915L-153KL - COILCRAFT PCB footprint - Other - Other - SER2900 Series
click to zoom
3D Models
SER2915L-153KL - COILCRAFT - 3D model - Other - SER2900 Series
click to zoom

SER2915L-153KL Details

  • Manufacturer Part Number:

    SER2915L-153KL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.6

  • Core Material:

    FERRITE

  • DC Resistance:

    0.00165 Ω

  • Inductance-Nom (L):

    15 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    15.36 mm

  • Package Length:

    27.9 mm

  • Package Style:

    SMT

  • Package Width:

    19.8 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    30 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    15 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Placement:

    SINGLE IN-LINE

  • Terminal Shape:

    GULL WING

  • Test Frequency:

    0.5 MHz

  • Tolerance:

    10%

SER2915L-153KL Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SER2915L-153KL is a rectangular pad with a size of 3.8 mm x 2.5 mm, with a non-solder mask defined (NSMD) pad shape.
  • The SER2915L-153KL is rated for operation up to 125°C, but derating is required for temperatures above 85°C. Consult the datasheet for specific derating guidelines.
  • Handle the SER2915L-153KL by the body, not the leads, to prevent damage. Avoid bending or flexing the leads, and use a pick-and-place machine or a vacuum pickup tool to minimize mechanical stress.
  • The maximum current rating for the SER2915L-153KL is 1.53 A, but this value may be affected by the operating frequency, temperature, and other factors. Consult the datasheet for specific current rating information.
  • Yes, the SER2915L-153KL is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SER2915L-153KL Overview

Use the download button to access the SER2915L-153KL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SER29, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
