SER2915L-333KL footprint, schematic symbol and 3D model by COILCRAFT

Symbol

click to zoom

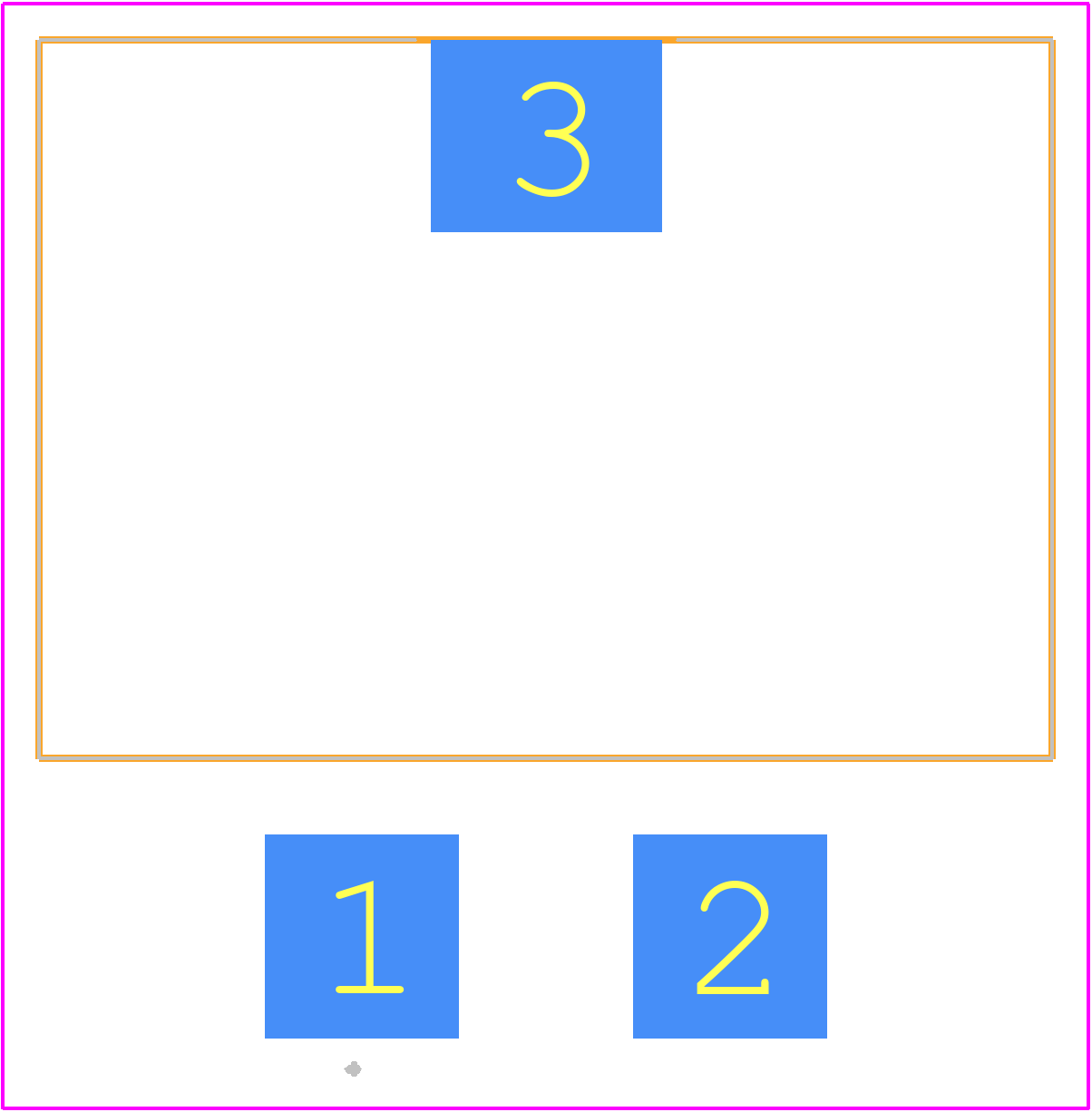

PCB Footprints

SER2915L-333KL - COILCRAFT PCB footprint - Other - Other - SER2915L-332KL-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SER2915L-333KL
Part Number SER2915L-333KL
Manufacturer COILCRAFT
Pin Count 3
Part Category Inductor
Package Category Other
Footprint Name Other - SER2915L-332KL-1
Released Date Dec 1, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SER2915L-333KL Details

Manufacturer Part Number:
SER2915L-333KL
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Manufacturer:
Coilcraft Inc
YTEOL:
6.6
Core Material:
FERRITE
DC Resistance:
0.00165 Ω
Inductance-Nom (L):
33 µH
Inductor Application:
POWER INDUCTOR
Inductor Type:
GENERAL PURPOSE INDUCTOR
JESD-609 Code:
e1
Number of Functions:
1
Number of Terminals:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Height:
15.36 mm
Package Length:
27.9 mm
Package Style:
SMT
Package Width:
19.8 mm
Packing Method:
Tray
Rated Current-Max:
30 A
Reference Standard:
AEC-Q200
Self Resonance Frequency:
7 MHz
Shape/Size Description:
RECTANGULAR PACKAGE
Shielded:
YES
Surface Mount:
YES
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Placement:
SINGLE IN-LINE
Terminal Shape:
GULL WING
Test Frequency:
0.5 MHz
Tolerance:
10%

SER2915L-333KL Frequently Asked Questions (FAQs)

The recommended land pattern for the SER2915L-333KL can be found in Coilcraft's Land Pattern Recommendations document, which provides detailed information on pad layout, spacing, and dimensions for optimal assembly and performance.
While the datasheet specifies an operating temperature range of -40°C to +125°C, Coilcraft recommends derating the inductor's current rating for extended operation above 105°C. Consult Coilcraft's Temperature Derating Guidelines for more information.
Yes, the SER2915L-333KL is compatible with lead-free soldering processes, including RoHS and WEEE compliance. Coilcraft's components are designed to meet or exceed industry standards for environmental sustainability.
The self-resonant frequency (SRF) of the SER2915L-333KL is not explicitly stated in the datasheet, but it can be estimated using Coilcraft's Inductor Self-Resonance Calculator tool or by consulting with a Coilcraft application engineer.
While the SER2915L-333KL is a high-quality component, it may not meet the specific requirements of high-reliability or aerospace applications. Coilcraft offers specialized components and services for these markets; consult with a Coilcraft application engineer to determine the best solution for your specific needs.

Trust Checks

Expert Contribution

System Verified

Community Approved

SER2915L-333KL Overview

Use the download button to access the SER2915L-333KL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SER29, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
