SER2915L-682KL - COILCRAFT

Description: 6.8 µH Shielded Wirewound Inductor 30 A 1.65mOhm Max Nonstandard

Download SER2915L-682KL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SER2915L-682KL - COILCRAFT - PCB symbol
click to zoom

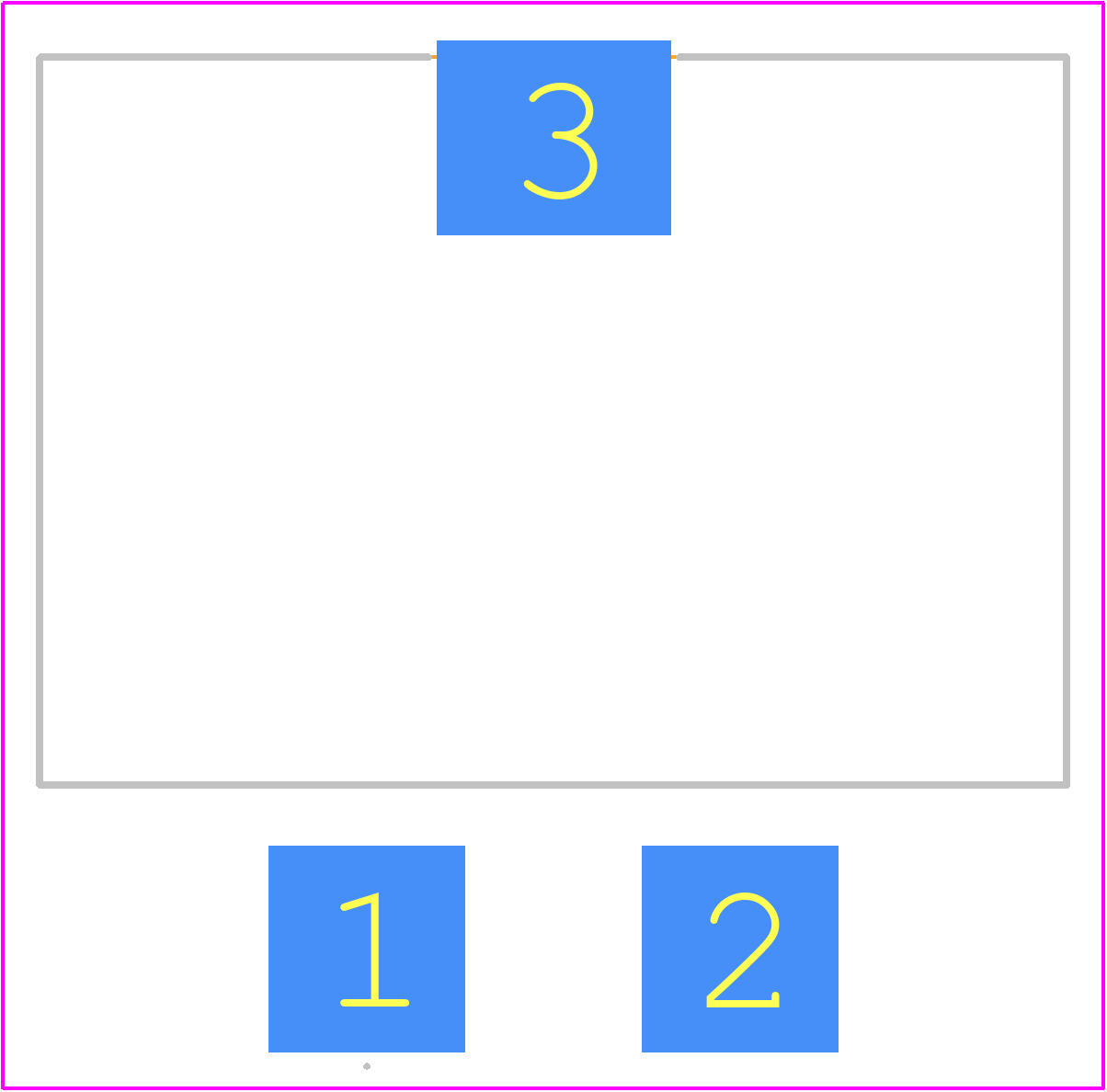

PCB Footprints
SER2915L-682KL - COILCRAFT PCB footprint - Other - Other - 27.9 x 19.8 x 15.36 mm
click to zoom
3D Models
SER2915L-682KL - COILCRAFT - 3D model - Other - 27.9 x 19.8 x 15.36 mm
click to zoom

SER2915L-682KL Details

  • Manufacturer Part Number:

    SER2915L-682KL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.6

  • Core Material:

    FERRITE

  • DC Resistance:

    0.00165 Ω

  • Inductance-Nom (L):

    6.8 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    15.36 mm

  • Package Length:

    27.9 mm

  • Package Style:

    SMT

  • Package Width:

    19.8 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    30 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    25 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Placement:

    SINGLE IN-LINE

  • Terminal Shape:

    GULL WING

  • Test Frequency:

    0.5 MHz

  • Tolerance:

    10%

SER2915L-682KL Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SER2915L-682KL can be found in the Coilcraft Land Pattern Recommendation document, which provides a detailed layout and footprint for optimal performance and reliability.
  • The SER2915L-682KL has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate airflow, using a heat sink if necessary, and following recommended PCB layout guidelines to minimize thermal resistance.
  • The SRF of the SER2915L-682KL is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. For a more accurate calculation, consult Coilcraft's application notes or contact their technical support.
  • The SER2915L-682KL has a maximum rated voltage of 50 V. While it can be used in high-voltage applications, ensure that the voltage rating is not exceeded, and consider using voltage derating guidelines to ensure reliable operation.
  • To select the correct inductor value, consider factors such as the target impedance, operating frequency, and current requirements. Consult Coilcraft's inductor selection guides and application notes for guidance on choosing the optimal inductor value for your specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SER2915L-682KL Overview

Use the download button to access the SER2915L-682KL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SER29, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
