SER2918H-153KL - COILCRAFT

Description: COILCRAFT - SER2918H-153KL - INDUCTOR, 15UH, 28A, PWR, 16MHZ

Download SER2918H-153KL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SER2918H-153KL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

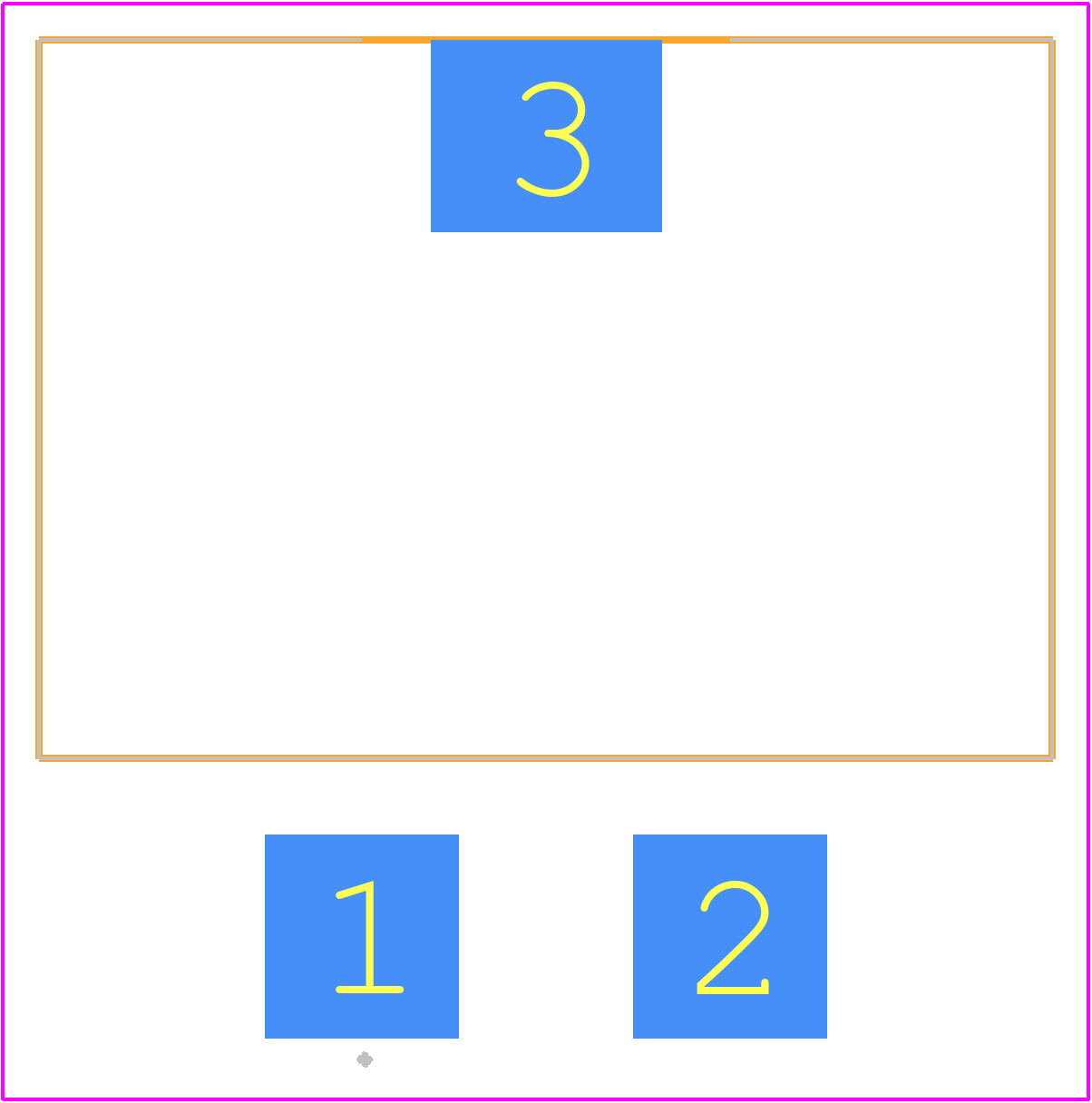

SER2918H-153KL - COILCRAFT PCB footprint - Other - Other - SER2900 Series
click to zoom
3D Models
SER2918H-153KL - COILCRAFT - 3D model - Other - SER2900 Series
click to zoom

SER2918H-153KL Details

  • Manufacturer Part Number:

    SER2918H-153KL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.6

  • Core Material:

    FERRITE

  • DC Resistance:

    0.00286 Ω

  • Inductance-Nom (L):

    15 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    17.78 mm

  • Package Length:

    27.9 mm

  • Package Style:

    SMT

  • Package Width:

    19.8 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    28 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    16 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Placement:

    SINGLE IN-LINE

  • Terminal Shape:

    GULL WING

  • Test Frequency:

    0.5 MHz

  • Tolerance:

    10%
