SF0070BA03049S - APITech

Description: 70 MHz SAW bandpass filter with 2 MHz bandwidth. 19 X 6.5 mm ceramic LCC package. RoHS compliant.

Download SF0070BA03049S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

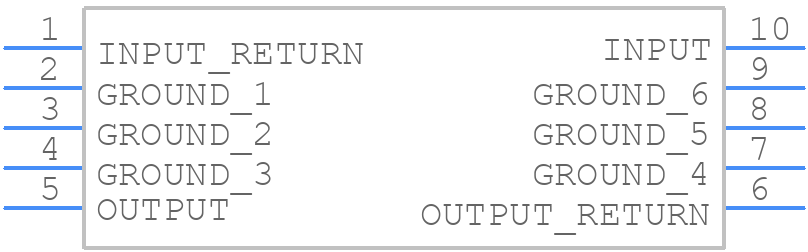

SF0070BA03049S - APITech - PCB symbol
click to zoom
PCB Footprints
SF0070BA03049S - APITech PCB footprint - Other - Other - SF0070BA03049S-1
click to zoom
3D Models
SF0070BA03049S - APITech - 3D model - Other - SF0070BA03049S-1
click to zoom

SF0070BA03049S Details

  • Manufacturer Part Number:

    SF0070BA03049S

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT, CERAMIC, LCC-10

  • Manufacturer:

    Spectrum Control

  • YTEOL:

    6.79

  • Center or Cutoff Frequency (fo/fc):

    70 MHz

  • Filter Type:

    SAW FILTER

  • Insertion Loss-Max:

    7.9 dB

  • JESD-609 Code:

    e4

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SF0070BA03049S Overview

Use the download button to access the SF0070BA03049S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SF007, or try a keyword search, such as SAW Filters
