Delta Electronics provides a reference design guide for the SF05D1205A, which includes recommended PCB layout and thermal design considerations. It's essential to follow these guidelines to ensure optimal performance, reliability, and thermal management.
The selection of input and output capacitors depends on various factors, including the input voltage, output voltage, and ripple current requirements. Delta Electronics recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The output capacitors should be selected based on the output voltage and ripple current requirements.
The maximum allowable ambient temperature for the SF05D1205A is 85°C, with a derating of 2.5% per degree above 70°C. It's essential to ensure proper airflow and thermal management to maintain the module's reliability and performance.
The SF05D1205A is designed to meet the vibration requirements of IEC 60068-2-6, which includes vibration testing up to 10G peak acceleration. However, it's recommended to consult with Delta Electronics or perform additional testing to ensure the module's reliability in specific high-vibration environments.
The MTBF of the SF05D1205A is typically in the range of 1 million to 2 million hours, depending on the operating conditions and environment. This estimate is based on Delta Electronics' reliability testing and modeling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SF05D1205A Overview

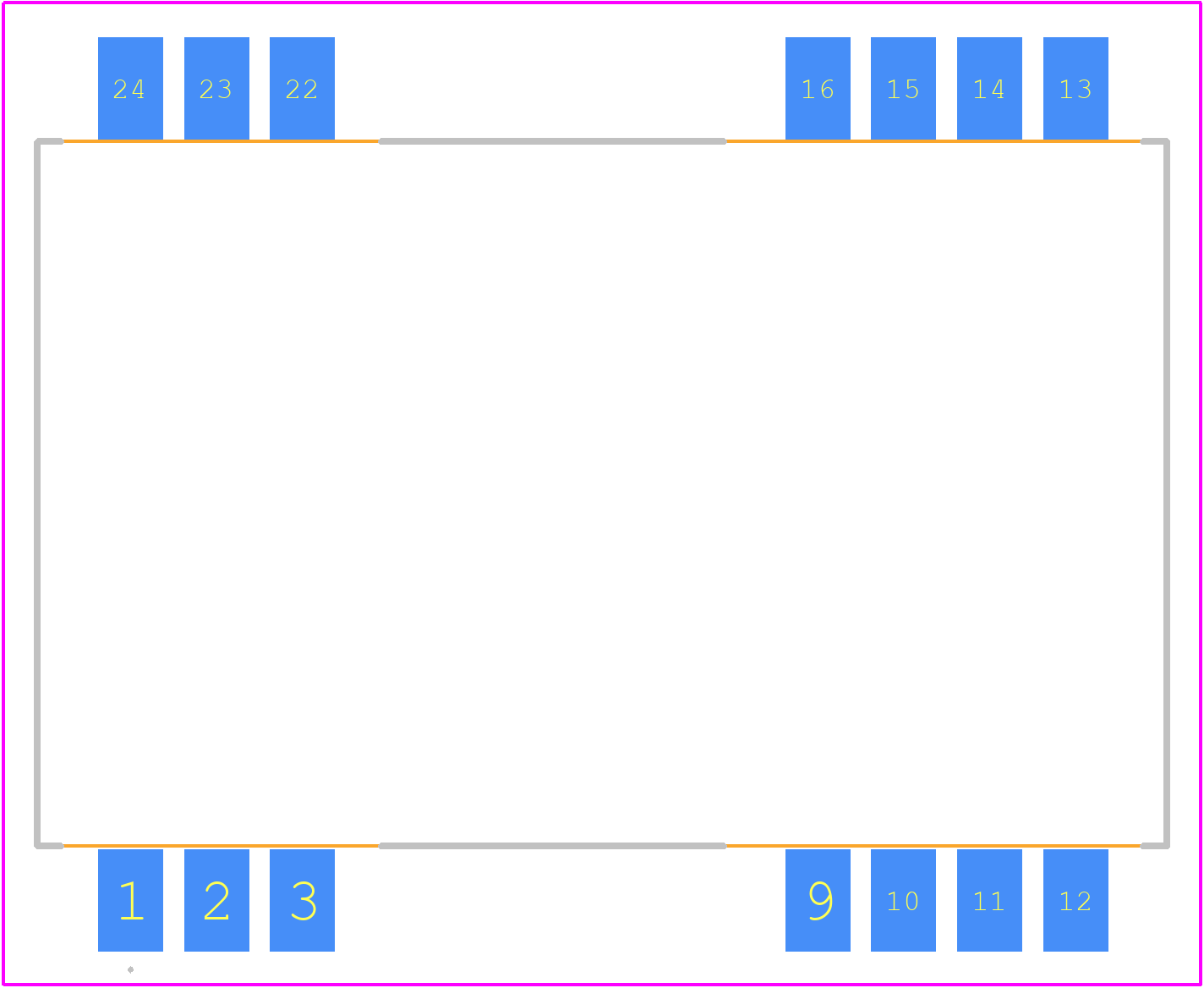

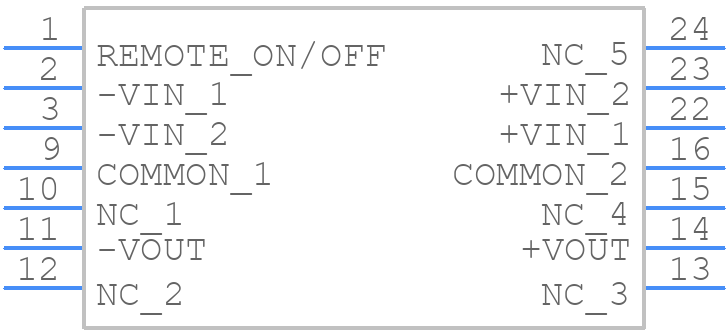

Use the download button to access the SF05D1205A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SF05D,
or try a keyword search, such as Power Supply Modules
