SF1186B-2 - Murata Electronics

Description: Signal Conditioning 1575.42 MHz, GPS RF SAW Filter

Download SF1186B-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

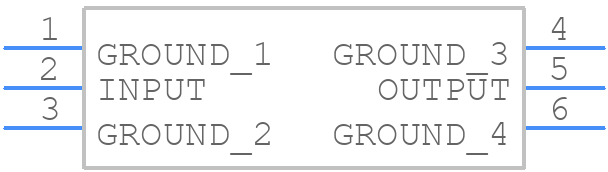

Symbol
SF1186B-2 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
SF1186B-2 - Murata Electronics PCB footprint - Other - Other - SM3030-6(H=1.38mm)
click to zoom
3D Models
SF1186B-2 - Murata Electronics - 3D model - Other - SM3030-6(H=1.38mm)
click to zoom

SF1186B-2 Details

  • Manufacturer Part Number:

    SF1186B-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, CERAMIC, CASE SM3030-6

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    TAPE AND REEL

  • Attenuation Frequency (+/- delta f)-Max:

    75420 kHz

  • Attenuation Frequency (+/- delta f)-Min:

    40000 kHz

  • Attenuation@Freq-Max:

    40 dB

  • Center or Cutoff Frequency (fo/fc):

    1575.42 MHz

  • Filter Type:

    SAW FILTER

  • Height:

    1.38 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3.5 dB

  • Length:

    3.13 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Screening Level:

    AEC-Q200

  • Width:

    3.13 mm

SF1186B-2 Frequently Asked Questions (FAQs)

  • Murata recommends a symmetrical layout with the component placed at the center of the PCB, and a solid ground plane on the bottom layer to minimize radiation and ensure optimal performance.
  • Use a reflow soldering process with a peak temperature of 240°C to 250°C, and ensure the component is aligned with the PCB pads. Avoid excessive soldering temperature and time to prevent damage to the component.
  • The SF1186B-2 can operate safely within a temperature range of -40°C to 85°C, but it's recommended to operate within a range of 0°C to 70°C for optimal performance and reliability.
  • While the SF1186B-2 is designed to operate in a normal humidity environment, it's not recommended for use in extremely humid environments. If operation in a humid environment is necessary, consider using a conformal coating or potting to protect the component.
  • Handle the component by the edges, avoid touching the pins or the component body, and store the component in a dry, clean environment to prevent damage and contamination.
