- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SF1V-4-61
- Part Number SF1V-4-61
- Manufacturer Idec
- Pin Count 13
- Part Category Connector
- Package Category Other

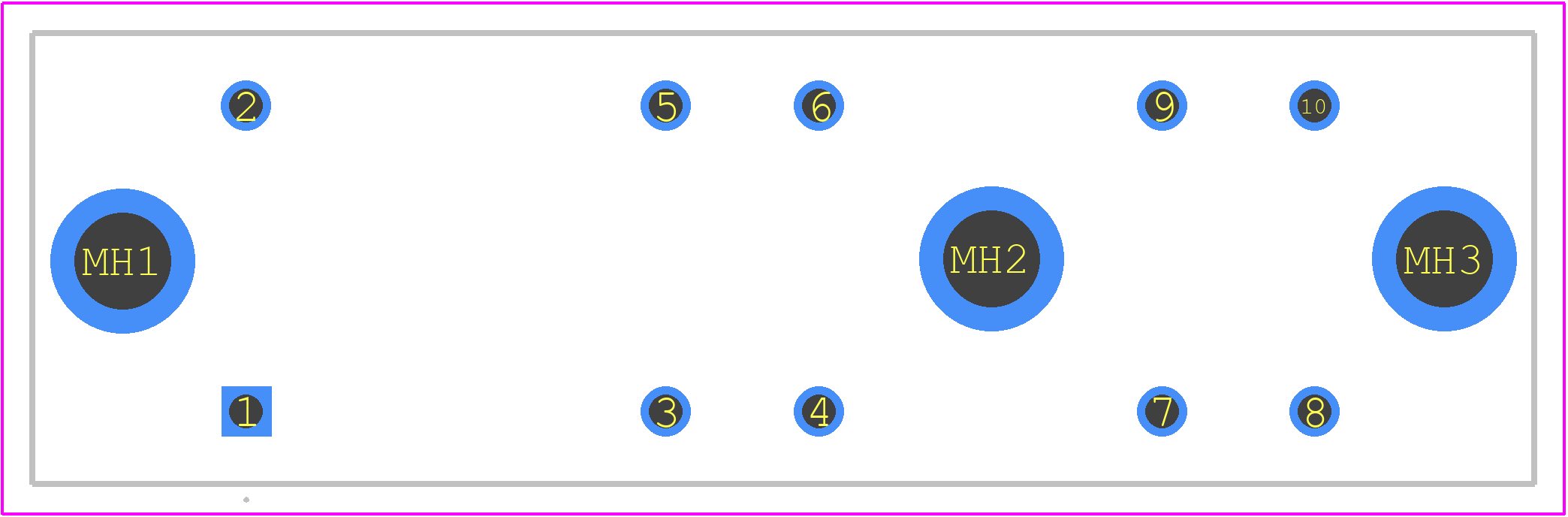

- Footprint Name Other - SF1V-4-61-2
- Released Date Nov 21, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SF1V-4-61 Details
-
Manufacturer Part Number:
SF1V-4-61
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
IDEC Corporation
-
YTEOL:
8
-
Additional Feature:
STANDARDS: CE; CSA; CUL; TUV; UL, IP20
-
Body Breadth:
0.591 inch
-
Body Depth:
1.575 inch
-
Body Length:
1.969 inch
SF1V-4-61 Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5 N·m to 1.5 N·m. However, it's essential to consult the installation manual for specific torque values, as they may vary depending on the application.
-
No, the SF1V-4-61 is not designed for use in hazardous locations. It's essential to choose a relay that meets the specific requirements for hazardous locations, such as explosion-proof or intrinsically safe designs.
-
The maximum wire size that can be used with the SF1V-4-61 is 2.5 mm² (AWG 14). Using larger wire sizes may not fit properly in the terminals or may cause connection issues.
-
While the SF1V-4-61 is a robust relay, it's not specifically designed for high-vibration applications. If you need a relay for high-vibration environments, consider using a relay with vibration-resistant design and certifications, such as IEC 61373.
-
The SF1V-4-61 is not designed for outdoor or wet environments. It's essential to use a relay with a suitable ingress protection rating (IP) and environmental certifications, such as IP67 or NEMA 4X, for outdoor or wet applications.
Trust Checks
Community Provided
System Verified
Community Approved
SF1V-4-61 Overview
Use the download button to access the SF1V-4-61 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SF1V-,
or try a keyword search, such as Sockets and Chip Carriers
