The recommended torque value is 0.5 N·m to 1.5 N·m. Over-tightening can damage the terminals.
No, the SF1V-6-61 is not designed for use in hazardous locations. It does not meet the requirements for explosion-proof or intrinsically safe devices.
The maximum wire size is 2.5 mm² (14 AWG). Using larger wires may not fit securely in the terminals.
Yes, the SF1V-6-61 can be used with SPDs, but ensure the SPD is rated for the same voltage and current as the relay.
Yes, the SF1V-6-61 is designed to withstand vibrations up to 10 G (10-2000 Hz). However, ensure proper mounting and wiring to prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SF1V-6-61 Overview

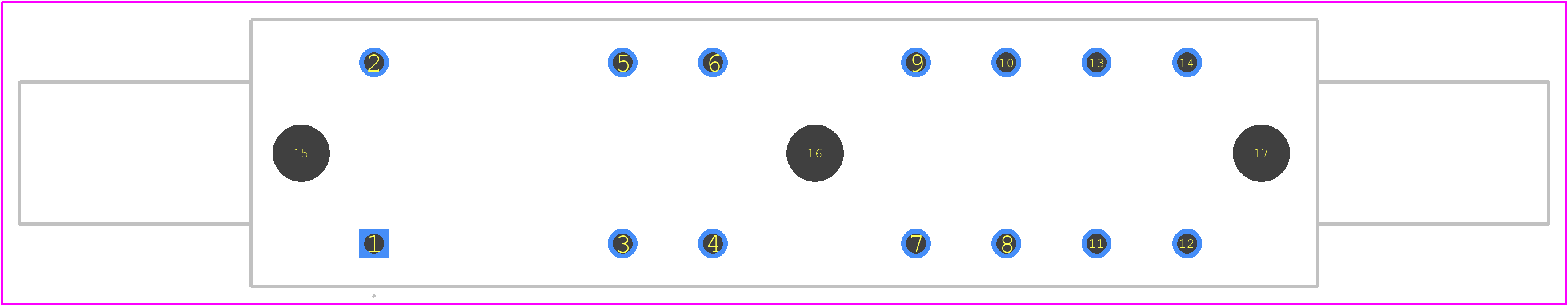

Use the download button to access the SF1V-6-61 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SF1V-,
or try a keyword search, such as Sockets and Chip Carriers
