SF2-DDC24V - Panasonic

Description: Electromechanical Relay 24VDC 1.152KOhm 6A DPST-NO/DPST-NC (53.3x25x16.5)mm THT Safety Relay

Download SF2-DDC24V Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SF2-DDC24V model

Email notifications will be applied after download.

Send part feedback

Symbol

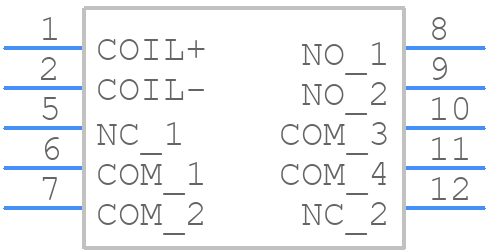

SF2-DDC24V - Panasonic - PCB symbol

PCB Footprints

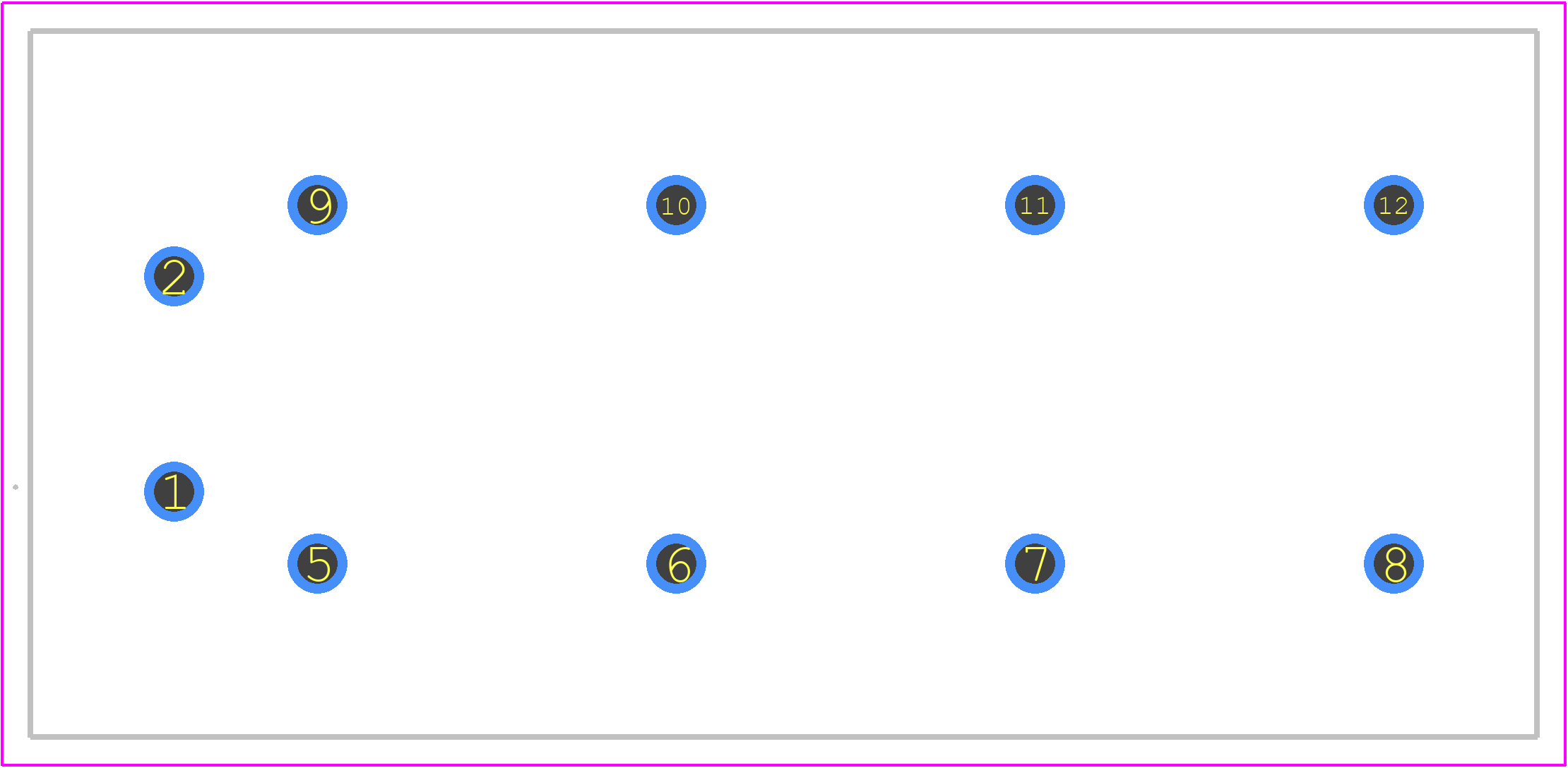

SF2-DDC24V - Panasonic PCB footprint - Other - Other - SF2DDC24V-2

3D Models

SF2-DDC24V - Panasonic - 3D model - Other - SF2DDC24V-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for SF2-DDC24V
Part Number SF2-DDC24V
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SF2DDC24V-2
Released Date Apr 12, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SF2-DDC24V Details

Manufacturer Part Number:
SF2-DDC24V
Manufacturer:
Panasonic Electronic Components

Trust Checks

Expert Contribution

System Verified

Community Approved

SF2-DDC24V Overview

Use the download button to access the SF2-DDC24V schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SF2-D, or try a keyword search, such as Special Relays
