SF2049E - Murata Electronics

Description: SAW Filter RF 915MHz Frequency 3.5dB 50Ohm SMD 6 Pin SM3030-6 T/R

Download SF2049E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

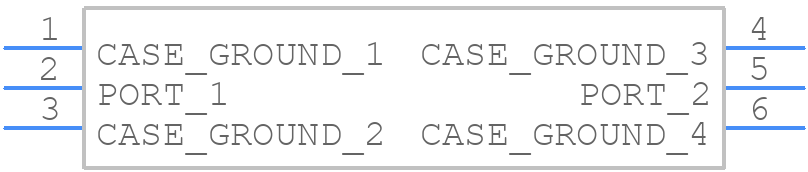

SF2049E - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
SF2049E - Murata Electronics PCB footprint - Other - Other - SF2049E-2
click to zoom
3D Models
SF2049E - Murata Electronics - 3D model - Other - SF2049E-2
click to zoom

SF2049E Details

  • Manufacturer Part Number:

    SF2049E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, CERAMIC, CASE SM3030, 6 PIN

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    TAPE AND REEL

  • Center or Cutoff Frequency (fo/fc):

    915 MHz

  • Filter Type:

    SAW FILTER

  • Height:

    1.38 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3.5 dB

  • Length:

    3.13 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Width:

    3.13 mm
