- Part Number SF2208E
- Manufacturer Murata Electronics
- Pin Count 6
- Part Category Filter
- Package Category Other
- Footprint Name Other - SF2208E-1
- Released Date Mar 4, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SF2208E Details
-
Manufacturer Part Number:
SF2208E
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT, CERAMIC, CASE SM3030-6
-
Manufacturer:
Murata Manufacturing Co Ltd
-
YTEOL:
0
-
Additional Feature:
TAPE AND REEL
-
Center or Cutoff Frequency (fo/fc):
1227 MHz
-
Filter Type:
SAW FILTER
-
Height:
1.38 mm
-
Input Impedance:
50 OHM
-
Insertion Loss-Max:
1.3 dB
SF2208E Frequently Asked Questions (FAQs)
-
Murata recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
-
Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid operating the device in high-temperature environments or near heat sources.
-
The SF2208E can tolerate a maximum voltage deviation of ±10% from the nominal input voltage. Exceeding this limit may affect the device's performance or reliability.
-
While the SF2208E is designed to operate in a wide range of environments, it's recommended to take precautions in high-humidity environments. Consider using conformal coating or potting to protect the device from moisture.
-
Start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
Expert Contribution
System Verified
Community Approved
SF2208E Overview

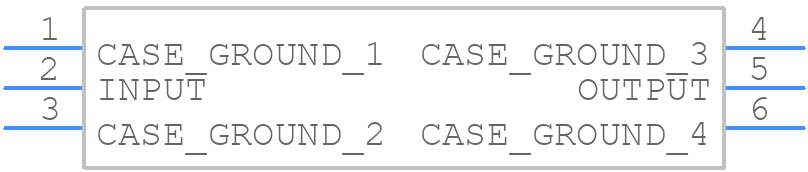

Use the download button to access the SF2208E schematic symbol, PCB footprint, and 3D model.
