SF2294E - Murata Electronics

Description: Signal Conditioning 922.500MHz BW 5.0MHz IL 4.2 dB

Download SF2294E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

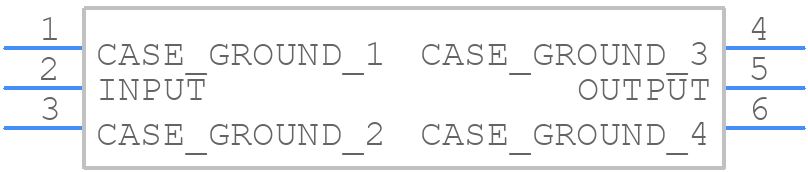

SF2294E - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
SF2294E - Murata Electronics PCB footprint - Other - Other - SF2294E-1
click to zoom
3D Models
SF2294E - Murata Electronics - 3D model - Other - SF2294E-1
click to zoom

SF2294E Details

  • Manufacturer Part Number:

    SF2294E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, SM3030-6, 6 PIN

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    TAPE AND REEL

  • Center or Cutoff Frequency (fo/fc):

    922.5 MHz

  • Filter Type:

    SAW FILTER

  • Height:

    1.38 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    4.2 dB

  • Length:

    3.13 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Impedance:

    50 OHM Ω

  • Width:

    3.13 mm
