SF2314E - RFMi

Description: Signal Conditioning FILTER, SAW, 866.5 MHZ, 6SMD

Download SF2314E Model
Schematic

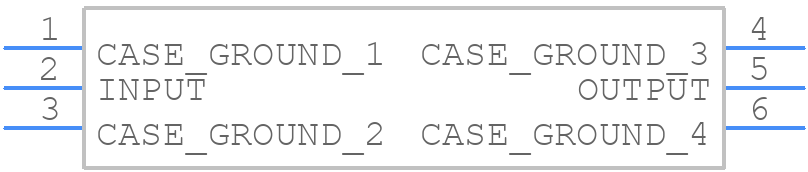

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SF2314E - RFMi PCB footprint - Other - Other - SM3030-6_2022
click to zoom
3D Models
SF2314E - RFMi  - 3D model - Other - SM3030-6_2022
click to zoom

SF2314E Details

  • Manufacturer Part Number:

    SF2314E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Manufacturer:

    RFM Integrated Device Inc

  • Additional Feature:

    TR, 7 INCH:500

  • Center or Cutoff Frequency (fo/fc):

    866.5 MHz

  • Filter Type:

    SAW FILTER

  • Height:

    1.38 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e4

  • Length:

    3.13 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -45 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    CERAMIC

  • Packing Method:

    TR, 13 INCH

  • Terminal Finish:

    GOLD OVER NICKEL

  • Width:

    3.13 mm
