Panasonic recommends a PCB layout with a solid ground plane, short and wide traces for the high-frequency signals, and a decoupling capacitor (e.g., 100nF) close to the device to reduce noise and ensure stable operation.
To ensure reliability in high-temperature applications, follow Panasonic's recommended derating guidelines, use a heat sink if necessary, and ensure good thermal conductivity between the device and the PCB. Additionally, consider using a thermally conductive adhesive or thermal interface material to improve heat dissipation.
While the datasheet specifies a maximum voltage rating of 60V, Panasonic recommends limiting the voltage to 55V during transient conditions to ensure reliable operation and prevent damage to the device.
Yes, SF2D-DC60V can be used in switching regulator applications, but it's essential to ensure that the device is properly biased and that the switching frequency is within the recommended range (typically < 1 MHz). Additionally, consider using a snubber circuit to reduce voltage spikes and ringing.
To troubleshoot SF2D-DC60V failures, start by checking the device's operating conditions (e.g., voltage, current, temperature), ensuring that they are within the recommended specifications. Next, verify the PCB layout and assembly quality, and check for any signs of physical damage or contamination. If the issue persists, consult Panasonic's application notes and technical support resources for further guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SF2D-DC60V Overview

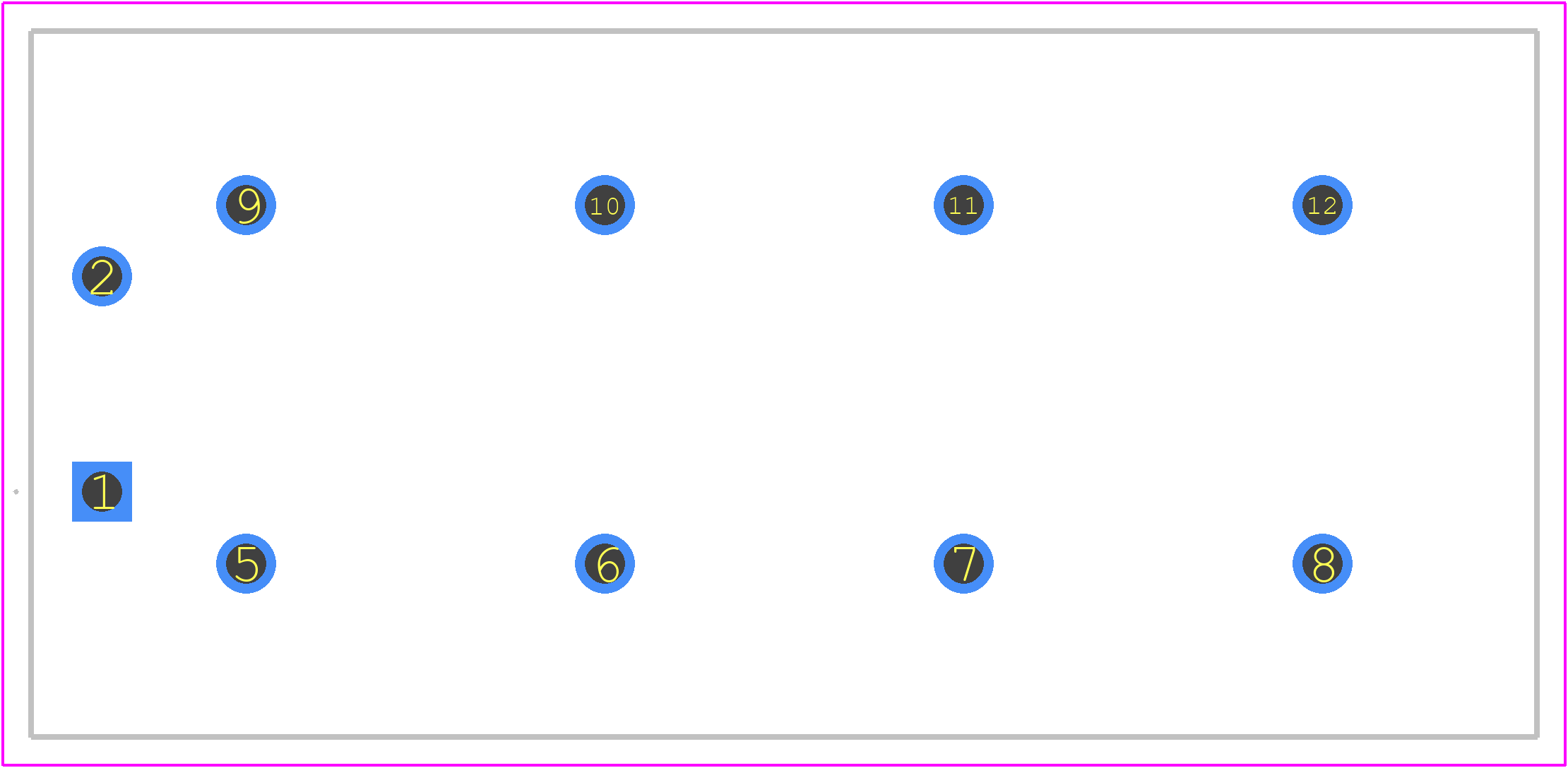

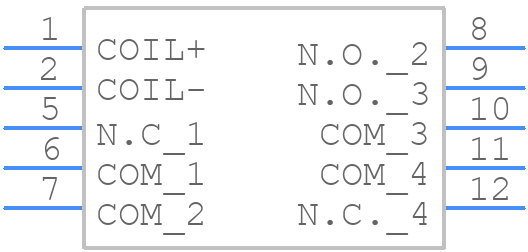

Use the download button to access the SF2D-DC60V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SF2D-,
or try a keyword search, such as Special Relays
