SF2DDC24V - Panasonic

Description: Electromechanical Relay 24VDC 1.152KOhm 6A DPST-NO/DPST-NC (53.3x25x16.5)mm THT Safety Relay

Download SF2DDC24V Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SF2DDC24V model

Email notifications will be applied after download.

Send part feedback

Symbol

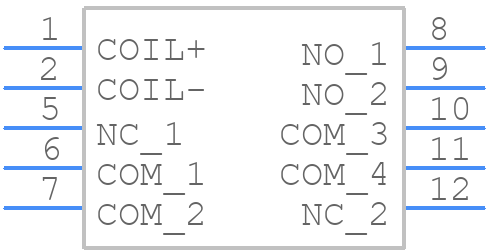

SF2DDC24V - Panasonic - PCB symbol

PCB Footprints

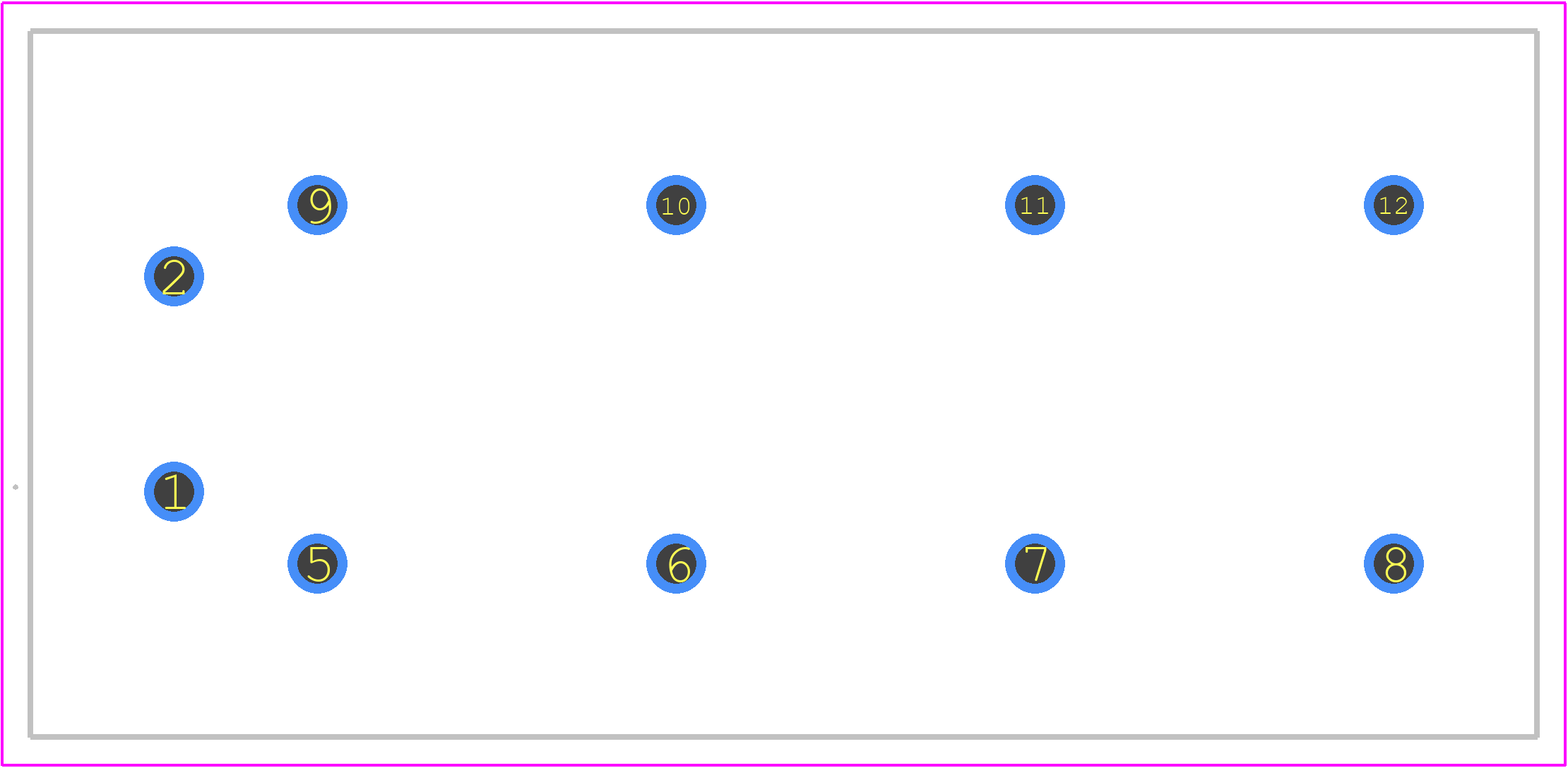

SF2DDC24V - Panasonic PCB footprint - Other - Other - SF2DDC24V-2

3D Models

SF2DDC24V - Panasonic - 3D model - Other - SF2DDC24V-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for SF2DDC24V
Part Number SF2DDC24V
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SF2DDC24V-2
Released Date Apr 12, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SF2DDC24V Details

Manufacturer Part Number:
SF2DDC24V
Manufacturer:
Panasonic Electronic Components

Trust Checks

Expert Contribution

System Verified

Community Approved

SF2DDC24V Overview

Use the download button to access the SF2DDC24V schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SF2DD, or try a keyword search, such as Special Relays
