SF3-DC24V - Panasonic

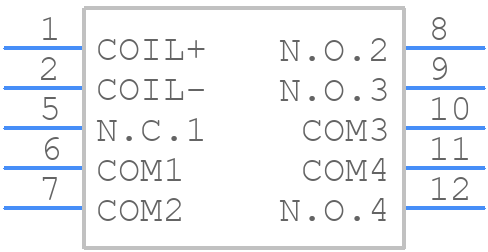

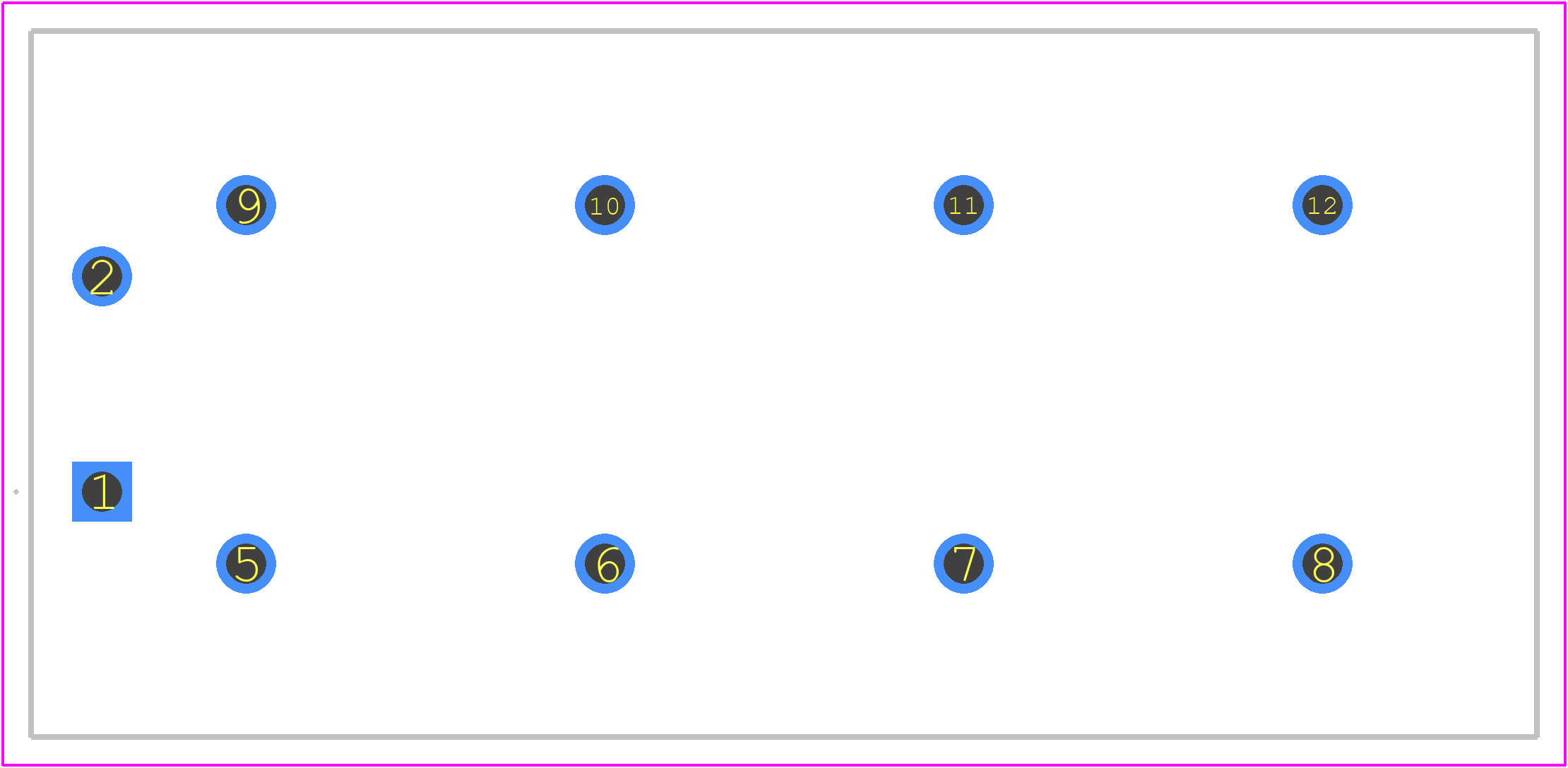

SF3-DC24V Details

• Manufacturer Part Number:

  SF3-DC24V

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  Panasonic Electronic Components

• Body Breadth:

  25 mm

• Body Height:

  16.5 mm

• Body Length or Diameter:

  53.3 mm

• Coil Current(DC)-Max:

  0.021 A

• Coil Operate Voltage(DC):

  14.4 V

• Coil Power:

  500 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  1152 Ω

• Coil Voltage(DC)-Max:

  24 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  6A@250VAC

• Contact Current(AC)-Max:

  6 A

• Contact Current(DC)-Max:

  6 A

• Contact (DC) Max Rating R Load:

  6A@30VDC

• Contact Resistance:

  30 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  30000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT MOUNT

• Number of Terminals:

  10

• Operate Time:

  30 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Physical Dimension:

  53.3mm x 25mm x 16.5mm

• Reference Standard:

  CSA; SEV; TUA; UL

• Relay Action:

  MOMENTARY

• Relay Function:

  3PST

• Relay Type:

  SAFETY RELAY

• Release Time:

  15 ms

• Surface Mount:

  NO

• Terminal Length:

  0.003500127000254001 inch

• Termination Type:

  SOLDER
