SF3-DC60V - Panasonic

Description: Flat type Safety relay compliant with Safety standards

Download SF3-DC60V Model

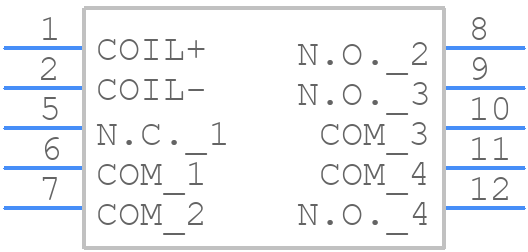

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

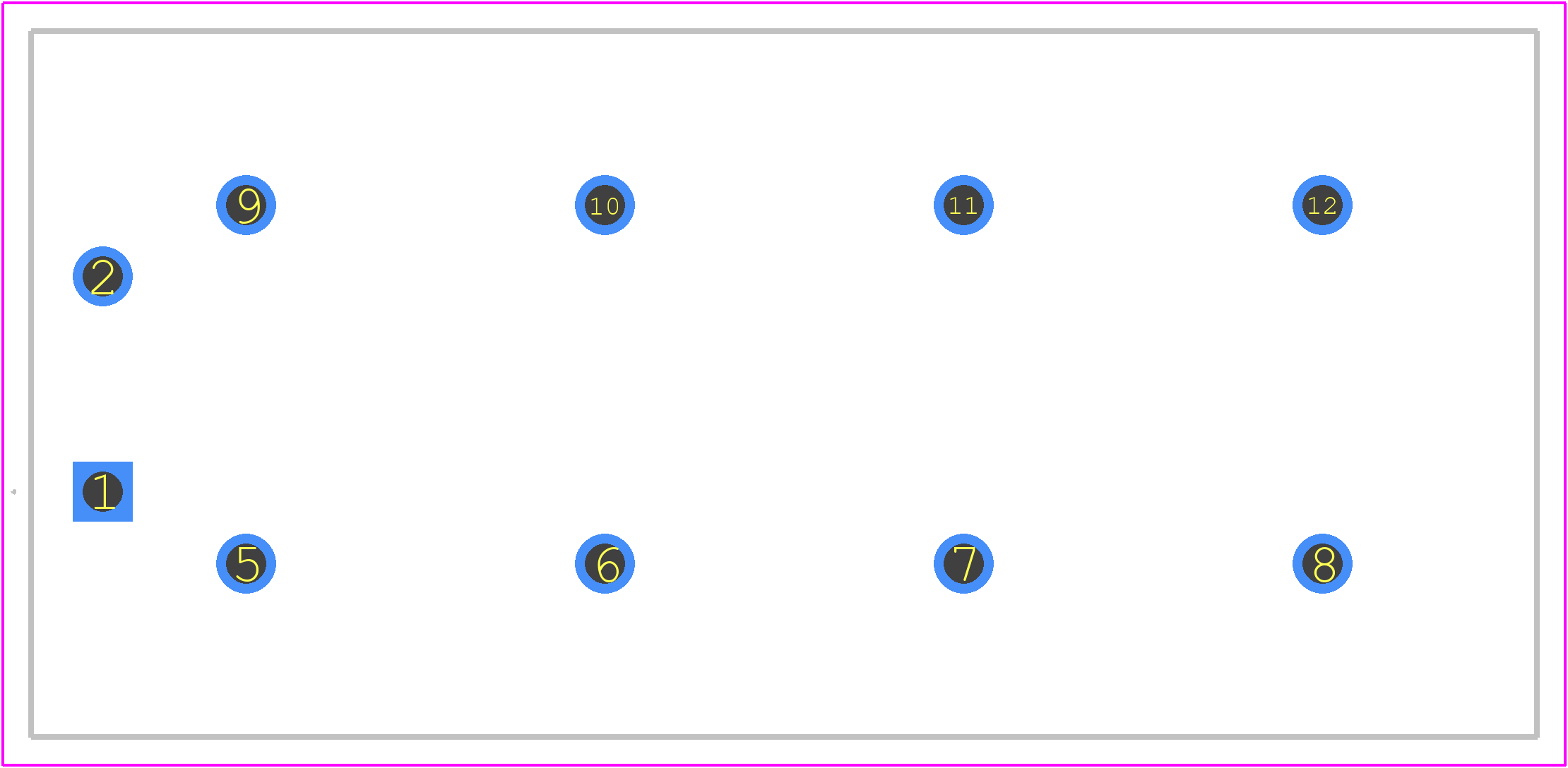

SF3-DC60V - Panasonic PCB footprint - Other - Other - SF3-DC48V
click to zoom
3D Models
SF3-DC60V - Panasonic  - 3D model - Other - SF3-DC48V
click to zoom

SF3-DC60V Details

  • Manufacturer Part Number:

    SF3-DC60V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Manufacturer:

    Panasonic Electronic Components

  • Body Breadth:

    25 mm

  • Body Height:

    16.5 mm

  • Body Length or Diameter:

    53.3 mm

  • Coil Current(DC)-Max:

    0.008 A

  • Coil Operate Voltage(DC):

    45 V

  • Coil Power:

    500 mW

  • Coil Release Voltage(DC):

    6 V

  • Coil Resistance:

    7200 Ω

  • Coil Voltage(DC)-Max:

    60 V

  • Coil Voltage-Nom:

    60 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    6A@250VAC

  • Contact Current(AC)-Max:

    6 A

  • Contact Current(DC)-Max:

    6 A

  • Contact (DC) Max Rating R Load:

    6A@30VDC

  • Contact Resistance:

    30 mΩ

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    30000 Cycle(s)

  • End Contact Material:

    Silver Tin Oxide

  • End Contact Plating:

    GOLD

  • Input Switching Control Type:

    Random

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT MOUNT

  • Number of Terminals:

    10

  • Operate Time:

    30 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Physical Dimension:

    53.3mm x 25mm x 16.5mm

  • Reference Standard:

    CSA; SEV; TUA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    3PST

  • Relay Type:

    SAFETY RELAY

  • Release Time:

    15 ms

  • Surface Mount:

    NO

  • Terminal Length:

    0.003500127000254001 inch

  • Termination Type:

    SOLDER
