SF4-DDC24V - Panasonic

Description: Safety Relay 8PST-4NO/4NC (4 Form A, 4 Form B) 24VDC Coil Through Hole

Download SF4-DDC24V Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SF4-DDC24V model

Email notifications will be applied after download.

Send part feedback

Symbol

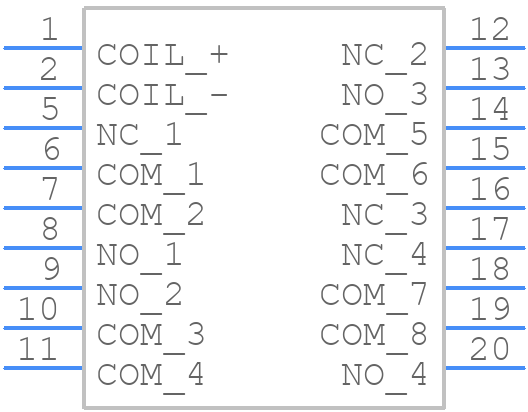

SF4-DDC24V - Panasonic - PCB symbol

PCB Footprints

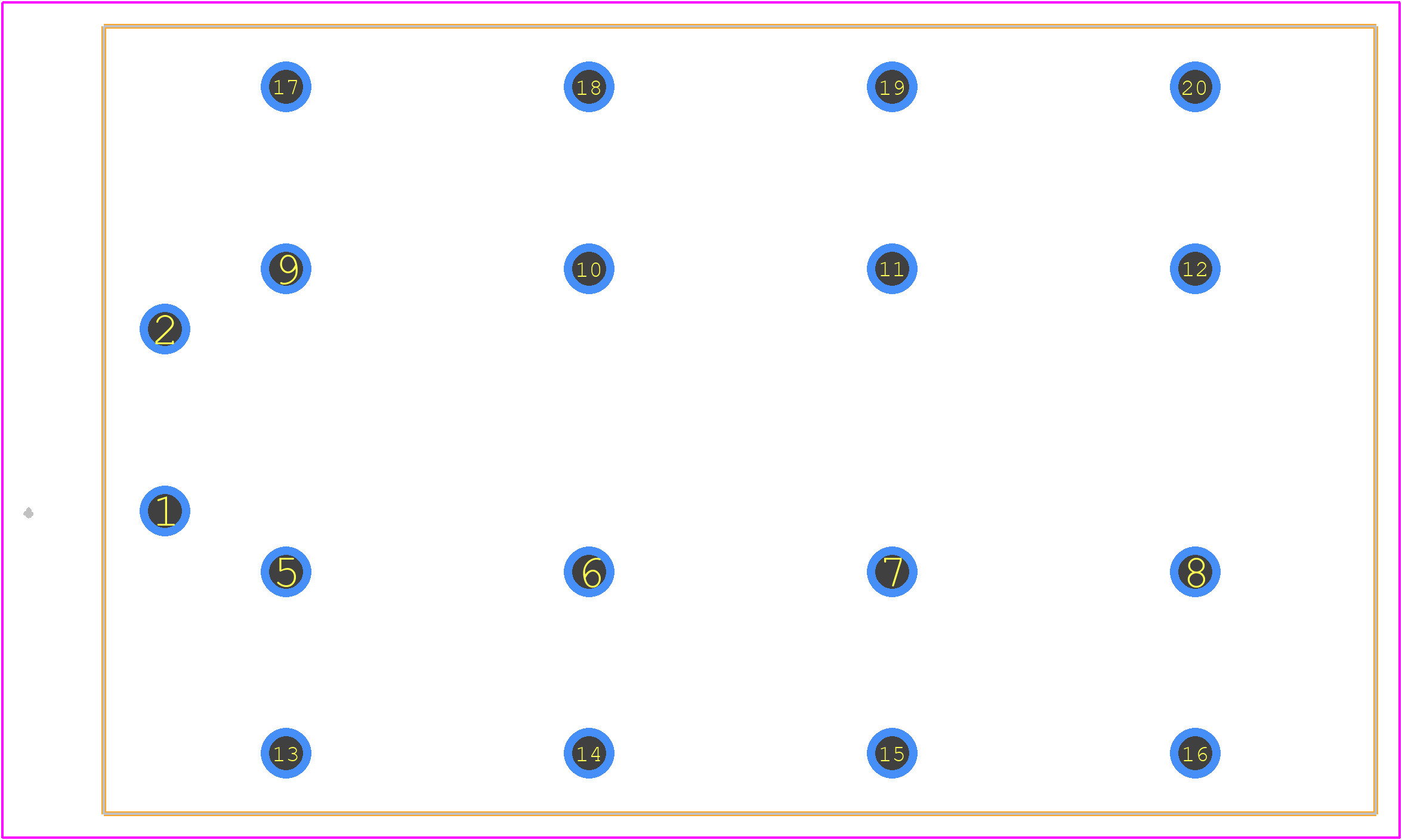

SF4-DDC24V - Panasonic PCB footprint - Other - Other - SF4-DDC24V

Datasheet Download Datasheet
Stock & Prices Price & Stock for SF4-DDC24V
Part Number SF4-DDC24V
Manufacturer Panasonic
Pin Count 18
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SF4-DDC24V
Released Date Sep 4, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SF4-DDC24V Details

Manufacturer Part Number:
SF4-DDC24V
Manufacturer:
Panasonic Electronic Components

Trust Checks

Expert Contribution

System Verified

Community Approved

SF4-DDC24V Overview

Use the download button to access the SF4-DDC24V schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SF4-D, or try a keyword search, such as Special Relays
