SFC-150-T2-F-D-A footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

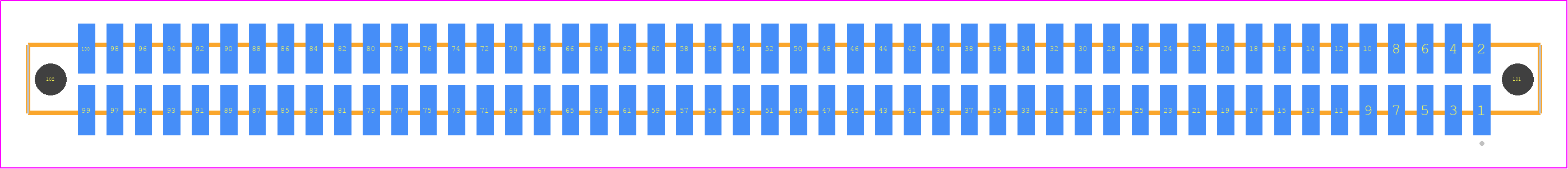

SFC-150-T2-F-D-A - SAMTEC PCB footprint - Other - Other - SFC-150-T2-XX-D-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFC-150-T2-F-D-A
Part Number SFC-150-T2-F-D-A
Manufacturer SAMTEC
Pin Count 100
Part Category Connector
Package Category Other
Footprint Name Other - SFC-150-T2-XX-D-A
Released Date Jun 28, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SFC-150-T2-F-D-A Details

Manufacturer Part Number:
SFC-150-T2-F-D-A
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Costa Rica, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
9.4
Additional Feature:
ALIGNMENT PIN
Body Breadth:
0.12 inch
Body Depth:
0.18 inch
Body Length:
2.515 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
TIN OVER NICKEL
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
.695 N
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
FLASH inch
Rated Current (Signal):
3.1 A
Reference Standard:
UL, CSA
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
100

SFC-150-T2-F-D-A Frequently Asked Questions (FAQs)

The recommended torque for the screws on the SFC-150-T2-F-D-A connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the SFC-150-T2-F-D-A connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
The maximum operating temperature for the SFC-150-T2-F-D-A connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
The SFC-150-T2-F-D-A connector has a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels. However, it's not designed for immersion in water or exposure to high-pressure water jets. For humid or wet environments, consider using a connector with a higher MSL rating or applying conformal coating.
The recommended mating cycle for the SFC-150-T2-F-D-A connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and environmental conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SFC-150-T2-F-D-A Overview

Use the download button to access the SFC-150-T2-F-D-A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SFC-1, or try a keyword search, such as Headers and Edge Type Connectors
