SFECF10M7DF00-R0 - Murata Electronics

Description: Signal Conditioning 10.7 MHz 30KHz Tol

Download SFECF10M7DF00-R0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

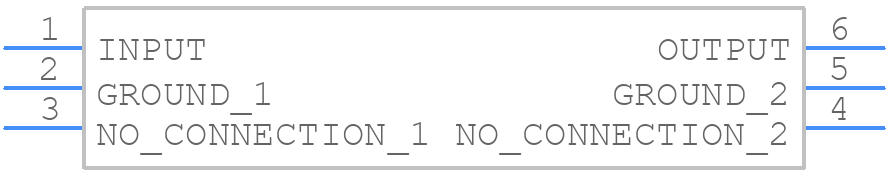

SFECF10M7DF00-R0 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
SFECF10M7DF00-R0 - Murata Electronics PCB footprint - Other - Other - SFECF10M7DF00-R0-1_2020
click to zoom
3D Models
SFECF10M7DF00-R0 - Murata Electronics - 3D model - Other - SFECF10M7DF00-R0-1_2020
click to zoom

SFECF10M7DF00-R0 Details

  • Manufacturer Part Number:

    SFECF10M7DF00-R0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMD, 6 PIN

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Center or Cutoff Frequency (fo/fc):

    10.7 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    1.3 mm

  • Input/Output Impedance:

    330 OHM

  • Insertion Loss-Max:

    6 dB

  • Length:

    3.45 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Width:

    3.1 mm

SFECF10M7DF00-R0 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SFECF10M7DF00-R0 can be found in the Murata Land Pattern Recommendation document, which provides guidelines for PCB layout and footprint design.
  • To ensure effective EMI shielding, it is recommended to connect the shield pins to the system ground plane, and to use a shield can or metal enclosure to enclose the module.
  • The operating temperature range for the SFECF10M7DF00-R0 is -40°C to +85°C, but it's recommended to check the datasheet for specific temperature ratings for different parameters.
  • The SFECF10M7DF00-R0 is designed to operate in a relative humidity range of 40% to 80%. However, it's recommended to take precautions to prevent moisture ingress and to follow proper storage and handling procedures.
  • Murata provides a troubleshooting guide for the SFECF10M7DF00-R0, which covers common issues and their solutions. It's recommended to consult the guide and contact Murata support if the issue persists.
