SFECF10M7EA00S0-R0 - Murata Electronics

Description: Signal Conditioning 10.7 MHZ 30 KHZ TOL

Download SFECF10M7EA00S0-R0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

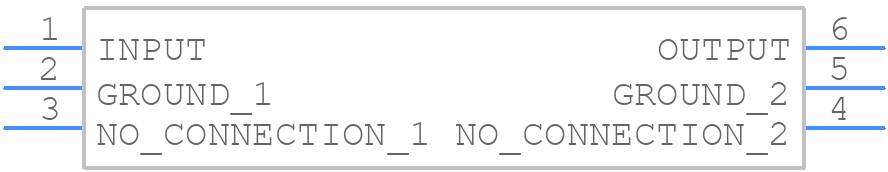

SFECF10M7EA00S0-R0 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
SFECF10M7EA00S0-R0 - Murata Electronics PCB footprint - Other - Other - SFECF10M7EA00S0-R0-2
click to zoom
3D Models
SFECF10M7EA00S0-R0 - Murata Electronics - 3D model - Other - SFECF10M7EA00S0-R0-2
click to zoom

SFECF10M7EA00S0-R0 Details

  • Manufacturer Part Number:

    SFECF10M7EA00S0-R0

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CERAMIC, SMD, 6 PIN

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    HIGH-RELIABILITY

  • Center or Cutoff Frequency (fo/fc):

    10.7 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    1.3 mm

  • Input/Output Impedance:

    330 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    3.45 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Width:

    3.1 mm

SFECF10M7EA00S0-R0 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SFECF10M7EA00S0-R0 can be found in the Murata Land Pattern document, which provides detailed information on the recommended pad layout and dimensions for optimal performance and reliability.
  • The SFECF10M7EA00S0-R0 is a moisture-sensitive device and should be handled according to the JEDEC J-STD-033 standard. This includes baking the components before reflow soldering and using a nitrogen-filled packaging to prevent moisture absorption.
  • The maximum reflow temperature for the SFECF10M7EA00S0-R0 is 260°C, as specified in the datasheet. Exceeding this temperature can cause damage to the component.
  • The SFECF10M7EA00S0-R0 is designed to withstand moderate vibration levels, but it's recommended to consult with Murata's application engineers to determine the suitability of the component for high-vibration environments.
  • The SFECF10M7EA00S0-R0 should be stored in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -10°C to 30°C, and the relative humidity should be below 60%.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SFECF10M7EA00S0-R0 Overview

Use the download button to access the SFECF10M7EA00S0-R0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SFECF, or try a keyword search, such as Ceramic Filters
