The recommended torque for the screw terminals is 0.5-1.5 Nm (0.36-1.06 lbf-in). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the SFH11-PPPC-D05-ST-BK is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's crucial to ensure proper mounting and screw torque to maintain the connector's integrity in such environments.
The SFH11-PPPC-D05-ST-BK has a black thermoplastic housing that provides some level of environmental protection. However, it's not specifically designed for outdoor or harsh environmental use. If you need a connector for such applications, consider using a connector with a higher IP rating or additional environmental protection features.
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to verify the wire size and insulation diameter to ensure proper fit and connection reliability. Consult with Sullins Connector Solutions or a qualified engineer for guidance on using alternative wire sizes.
Yes, to ensure reliable connections and prevent damage to the connector or PCB, follow the recommended PCB layout guidelines provided in the datasheet or by Sullins Connector Solutions. Pay attention to the connector's footprint, pin spacing, and keep-out areas to avoid any potential issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFH11-PPPC-D05-ST-BK Overview

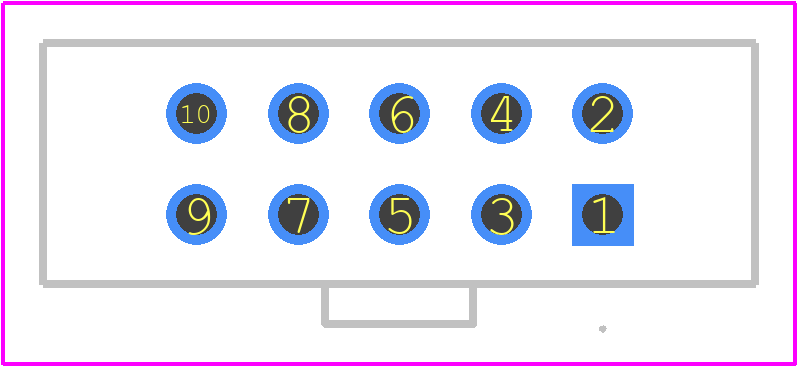

Use the download button to access the SFH11-PPPC-D05-ST-BK schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SFH11,
or try a keyword search, such as Headers and Edge Type Connectors
